How to connect Retevis RT76P to GMRS repeaters around you

How to connect Retevis RT76P to GMRS repeaters around you

On mygmrs.com and other GMRS websites, we can see a lot of public GMRS repeater information. This public information can let you know the GMRS repeater situation around you, and you can contact the repeater owner to connect it after permission, connect your GMRS radio to these GMRS repeaters to get a longer communication distance. Today, Retevis Solutions will take Retevis RT76P as an example to show you how to connect your GMRS radio to your favorite GMRS repeater.

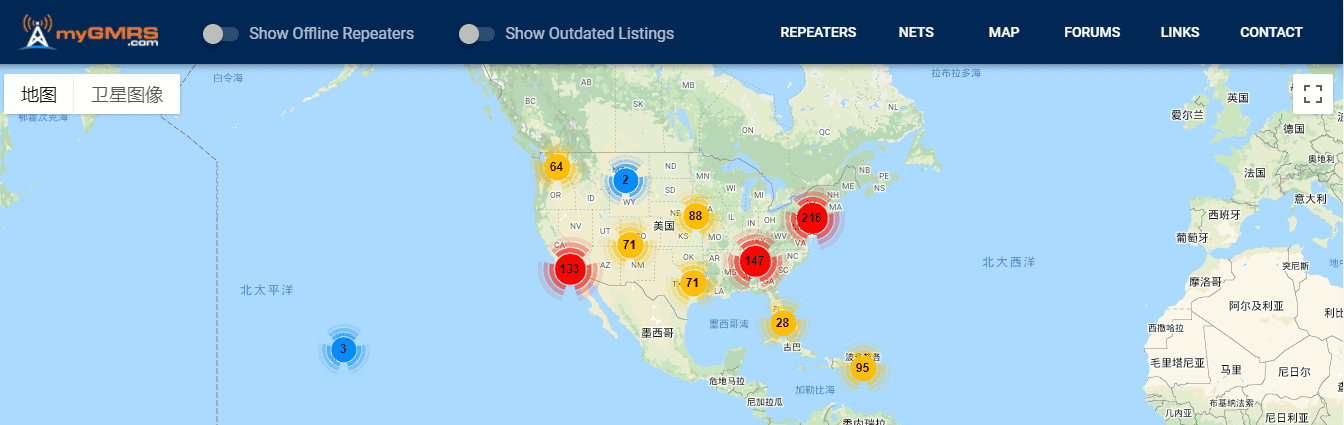

gmrs repeater mapgmrs repeater map( comes from https://mygmrs.com/map)

Step1. Know the RX, TX, B/N, and Tone Out/In of the relay you want to connect
On the https://mygmrs.com/map website, for example, you can find the following information about a relay nearby:

mygmrs-repeater-informationThe repeater data comes from https://mygmrs.com/map

As the online shows, the H is 467.625Mhz, L is 462.625mHZ, B/N is 12.50K that means "n", also know as narrow(B means 25K). and the Tone Out/In is 131.

Step 2: Prepare the Retevis RT76P walkie-talkie, program cable, use the cable to connect the Retevis RT76P to the computer, after read, we will find that the 26 channels of Retevis RT76P, TX is 467.625, RX is 462.625, which is corresponding to the LH frequency of the repeater.

Retevis RT76P radio setting to connect repeater

We only need to use the cable to input the 26-channel Rx QT/DQT and Rx QT/DQT (corresponding to the Tone Out/In of the repeater) directly into 131, and according to the repeater repetidor paso 12.50KZ, select B /N is N(As shown above ). After confirm all is no problem, save the settings to the Retevis RT76P radio. After the write is successful, you can extend the talking distance of your Retevis RT76P through the shared repeater. The specific expandable distance depends on the use environment of your walkie-talkie and the repeater situation. Please make sure your walkie-talkie is within the coverage of the repeater signal.

Possible questions and answers in the settings:

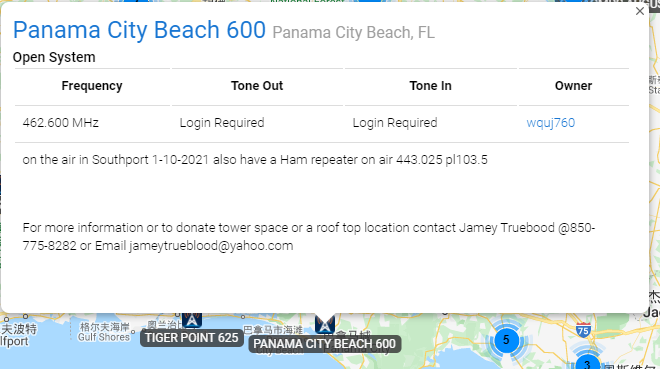

gmrs repeater contact informationgmrs repeater contact information

Q: In mygmrs.com/map, not all the repeater information is public, and it is rarely completely public. At this time, how can you get the repeater information for the setting?

A: Click on the repeater you want to connect to, we can see the contact information left by the repeater owner on the display interface, and contact the owner directly to get the most comprehensive data settings. All the intermediate sharers are very generous. Only need one email!

Q: I can't find valid Rx QT/DQT and Rx QT/DQT in RT76P's program software.

A:Rx QT/DQT and Rx QT/DQT in Retevis RT76P program software support manual input. If you can't find a match in the selection list, you can also input it directly. Just like in the above example, there is no 131.0 in the frequency program list, then you can directly input.

Retevis Solutions focus on supplying long range walkie talkie and radio solutions, if you need any help in radio solutions, welcome to contact us:info@retevissolutions.com.
