Industries Long rang radio solution set

In Stock Unavailable
SKU: A9150C-C9073A-C9123A-A9195A*12

Regular price $899.99

*Cheap analog radio solution set

*with high gain antenna

*up to 12km talking distance

FREE shipping on all orders over $100.


Retevis RT85 5W Dual band dual standby Analog Two Way Radio outstanding advantages:

Retevis RT85 5W Dual band radio is a new model fit for building, outdoor activities, commercial,etc. Retevis RT85 with screen display, unique appearance design, big flashlight,FM radio function,very fit for outdoor activities, plus the use of the Retevis RT97 repeater set, the 5W retevis RT85 walkie talkie can easily reach the call distance 12km, from 3.0km to 12km. At the lowest cost, we maximize the talk distance of the walkie-talkie.

Retevis RT97 Portable signal Repeater outstanding advantages:

The same mini appearance, the mini size of retevis RT97 also subverts people’s definition of the appearance of the relay. The size of 260*210*70mm allows the retevis RT97 to be placed in any corner without affecting the overall layout. Simple internal structure, complete structure, safe and efficient, Retevis RT97 mini relay has become the best choice for more and more discerning business people.

Aluminum Alloy Omni-Directional Base Station Receiving and Transmitting Antenna:

Omni directional base station antenna, with high gain, wide bandwidth, low standing wave ratio, waterproof, anti - corrosion with high strength and high quality aluminium alloy package, strong wind resistance characteristics, is a kind of ideal communication antenna, antenna design style, easy disassembly and assembly and convenient use.

Key point:12km long talking distance!!!

As we all know,5W handheld walkie-talkies generally have a talk distance of about 3.0km, while Retevis RT87can reach 3.0km without any auxiliary equipment. By using Retevis RT97 repeater, its talk distance can even reach 12km. More importantly, Retevis 5W IP67 waterproof and dustproof radio solution set very cost-effective.

15m Pure Cupper Low Loss Coaxial Extend Cable

15m lenght Pure copper feeder cable, specially customized for Retevis RT97 relay repeater, can be used directly, without adapter, super Gainer Low Loss signal, make your radio signal stronger and cover wider.

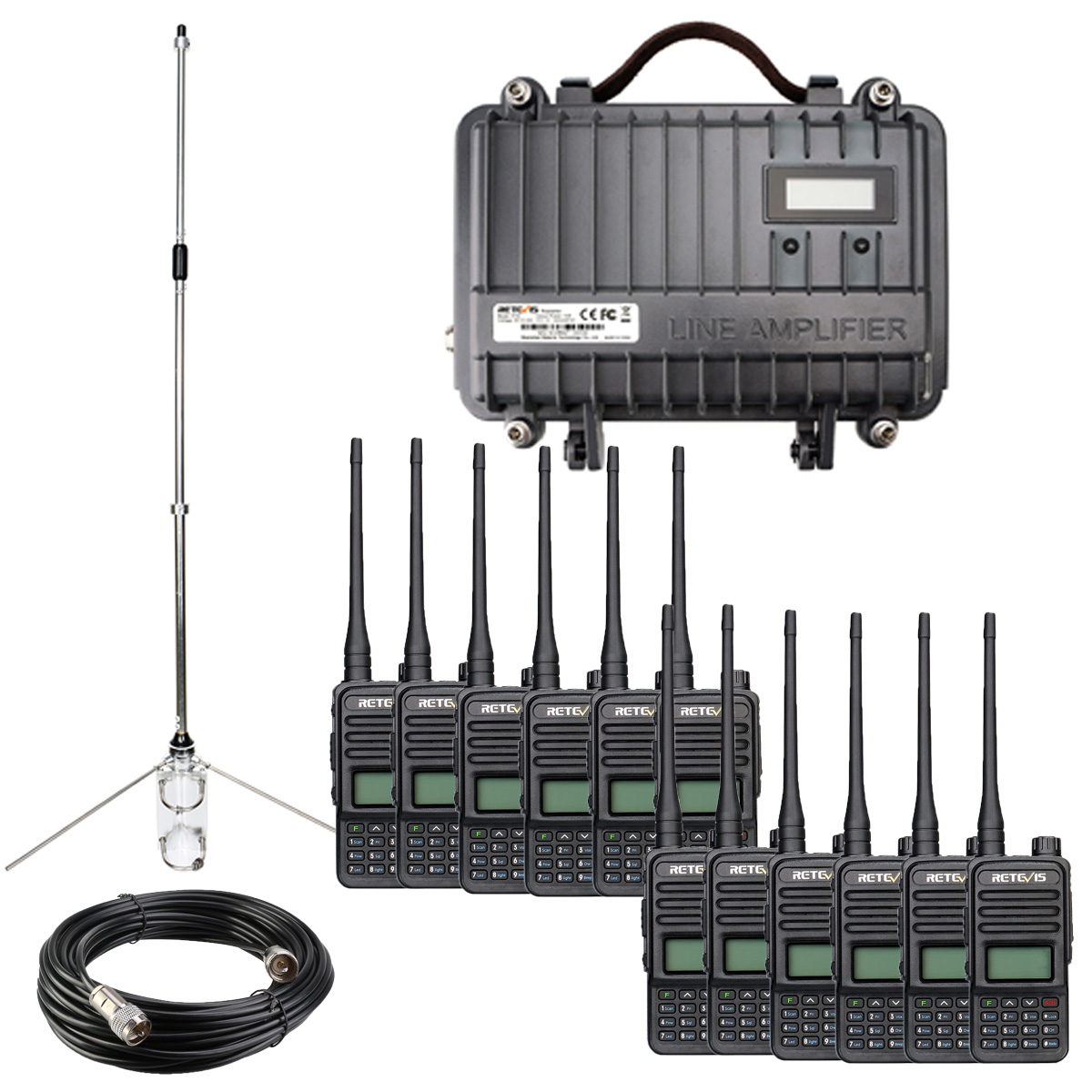

Package Include:

  • 12 x RT85 Two Way Radio
  • 1 x full set Retevis RT97 Repeater
  • 1 x Omni-Directional Base Station Antenna
  • 1 x 15m cable

Retevis RT97 Technical parameters:

Specifications

Frequency Range

400-470MHz

Channel Capacity

16CH

Channel Spacing

±12.5KHz Narrow/±25kHz Wide

Operating Voltage

DC12V ~24V

Operating Temperature

-30°C~ +60°C

Frequency Stability

±2.5ppm

Antenna Impedance

50Ω

Dimension

260*210*70mm

Weight

1.66kg

Transmitter

Intermediate Frequency

465MHz

Power Output

10W

Modulation

F3E

Spurious Emission

-60dB or less

Maximum Frequency Deviation

Wide: ±5kHz Narrow: ±2.5kHz

Audio Distortion

5% or less

FM Noise

Wide:≤45dB Narrow :≤40dB

Receiver

Intermediate Frequency

455MHz

Sensitivity(12dB SINAD)

0.2μV (Wide) 0.25μV (Narrow)

Squelch Sensitivity

0.15μV (Wide) 0.2μV (Narrow)

Adjacent Channel Selectivity

≥ 70dB (Wide) / ≥65dB (Narrow)

Intermodulation

≥ 55dB

Spurious Rejection

≥ 55dB

Image Rejection

≥ 55dB

FM Ham and Noise

≤-45dB(Wide) / ≤ -40dB(Narrow)

Modulation Type

F3E

Operating Bandwidth

≤±7KHz / ≤±5KHz

Audio Distortion

≤ 5%

Retevis RT85 handheld walkie talkie Technical parameters:

General

Frequency Range

136.000-174.000MHz
400.000-470.000MHz

channel capacity

200Channels

Working Voltage

DC 7.4V

Working Temperature

-10℃~+50℃

Battery capacity

1400mAh

Antenna Impendence

50Ω

Channel step value

12.5KHz/25KHz

Transmitter

Output power

1W/5W

Stray power

≤-15db

modulation noise

<-40dB

Modulation distortion

<5%

maximum frequency offset

≤±5KHz

transmit current

≤1600mA

audio response

  +6.5~-14dB

adjacent channel power

≥65dB

Receiver

Sensitivity

≤ 0.2uV

Occupied Bandwidth

≤ 16KHz

Selectivity

≥ 65dB

Intermediation

≥ 55dB

Audio power

> 500m W

Audio distortion

≤5%

Frequency Stability

5ppm

Current

60mA (when standby) 250mA (when working)

Audio response

+7~-12.5dB

Aluminum Alloy Omni-Directional Antenna Specification:

Brand

Retevis

Model

MA01

Color

Silvery White

Frequency

390-470MHz

Gain

4dBi

Support Power

100W

S.W.R

<1.2

Element

3

Length

45.7inch(116cm)

Weight

0.748kg

Retevis 50-3 Pure Cupper Low Loss Coaxial Extend Cable 15 Meter

Super Gainer Low Loss Coaxial Cable
Suitable for Retevis RT97 repeater
Material: pure copper
Impedance: 50Ω
Return loss: VHF≥20dB UHF≥15dB
Connector plug: SL16
Cable diameter: 5mm / 0.2inch
Cable Length: 15 meter

Note:If the 15m cable length can't meet your needs,welcome to tell us your requirement,we supply customize length service.

Retevis RT85 Brochure

Retevis RT85 Programming Software

Retevis RT85 English Manual
