RT10 900MHz digital radio Transceiver
FREE SHIPPING (Except for pure batteries) ×

RT10 900MHz digital radio Transceiver

In Stock Unavailable
SKU: A9212Z-C9034A

Regular price $79.99

*900MHZ(902-928MHz) Digital radio Transceiver

*Digital and analog compatible

*AMBE +2TM

FREE shipping

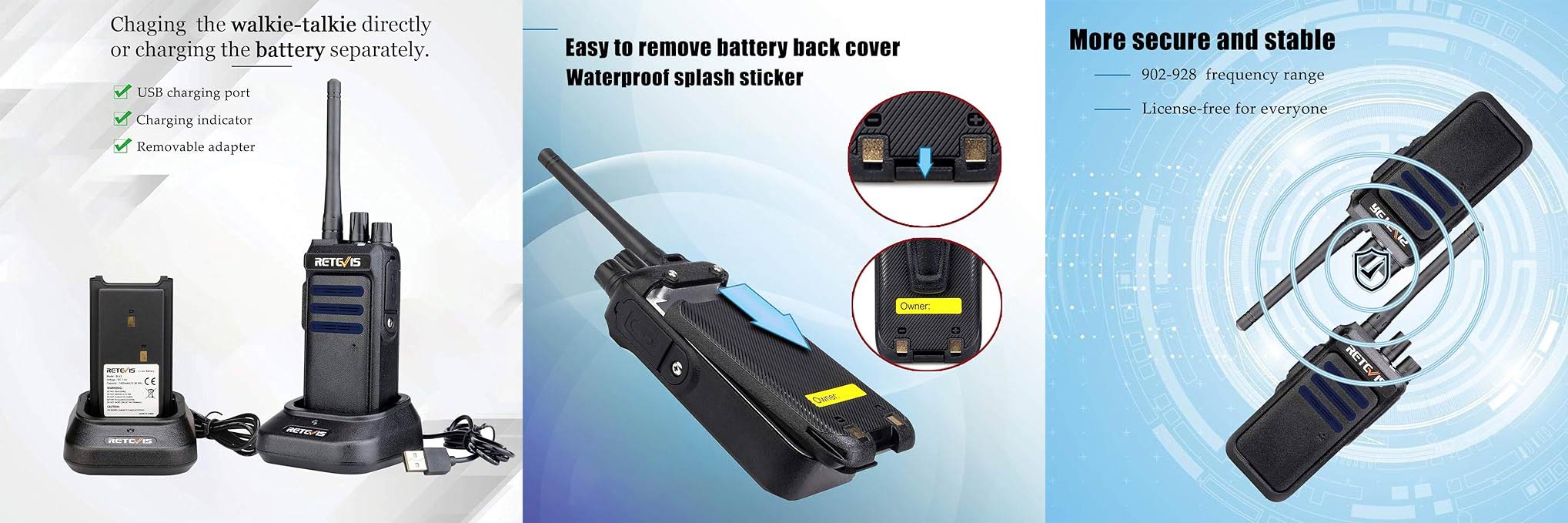

Retevis RT10 900MHz Digital Walkie Talkie

902-928MHz,  Digital and Analog, High sound quality, Retevis RT10 handheld 900mhz walkie talkie designed for business operations, Support two communication modes to ensure the efficiency of communication, very suitable for commercial use.

Licensed by the Federal Communications Commission (FCC) and Industry Canada to operate in the license-free 902-928 MHz ISM (Industrial, Scientific and Medical) band.
Designed for business operations, the RT10 radio will free your time from regulatory paperwork and licensing applications and saving radio licensing fees.

Features:

1. 902-928MHz digital radio
2. Digital and analog compatible
Support digital and analog two communication modes to ensure that the original analog products smooth transition to digital products to meet different communication needs
3. Digital signaling function
Rich calling modes that support protocol, including single call, group call and all call; supports remote inhibit function and other applications
4. High sound quality
This digital two-way radio uses advanced AMBE +2TM voice processing technology to achieve higher quality
5. Prominent functional keys
Programmable button can be used to quickly access call features like Call All/Page All, to talk to radios without searching through your channel list.
6. Supports the use of repeater

Specification:

50-channel(up to 200)

Single call, group call and all call

Double time slot, color code (0-15)

Region selection

Power saving, low voltage alarm

Scan

Monitoring, SOL ( 1-10level)

Tail cancellation

Side key definition

VOX, TOT (495S)

Encryption function

Relay / de-netting function

Package Includes:

1 x Retevis RT10 900Mhz walkie talkie
1 x Antenna
1 x Battery
1 x Belt Clip
1 x Sling
1 x User Manual
1 x USB Charger
1x charger adapter

Retevis RT10 900MHz Digital Walkie Talkie Main technological specification

Frequency range 902 - 928 MHz
Channel Capacity 50CH (up to 200)
Channel Spacing 12.5KHz
Operating Temperature -25°C~+60°C
Operating Voltage DC7.4V
Antenna Impedance 50 ohm
Microphone Impedance 2.2Kohm
Battery 1400mAh
Dimension 220X60X35mm(including antenna)
Weight 278g

Transmission

Output power 1W
FM modulation 8KØF3E
4FSK digital modulation 7K60FXE
Vocoder type AMBE++or SELP
Digital Protocol ETSI-TS102 361-1,-2,
Harmonic >=70dB
Signal-to-noise <=-40 dB
Rated audio Distortion >=5%
Frequency Stability ±2.5ppm
Max Frequency Stability <=-40dB

Receptiop

Sensitivity (12dB SINAD) <=-119dB
Digital 0.3µV/BER5%
Signal-to-noise Radio >=40dB
Adjacent channel selectivity >=60dB
Intermediation (Wide/ narrow) >=55dB
Spurious Response Rejection >=65 dB
Audio power 1W
Audio distortion <5%
Frequency Stability ±2.5ppm
Battery life under 5-5-90duty 14.8 hours

Retevis RT10 Brochures

Retevis RT10 Codeplug

Retevis RT10 Software

Retevis RT10 English Manual
