*GPS and Texting Functions
*Support MOTOTRBO series Tier I and II
*TDMA digital function
*Dual time slot for repeater
FREE shipping

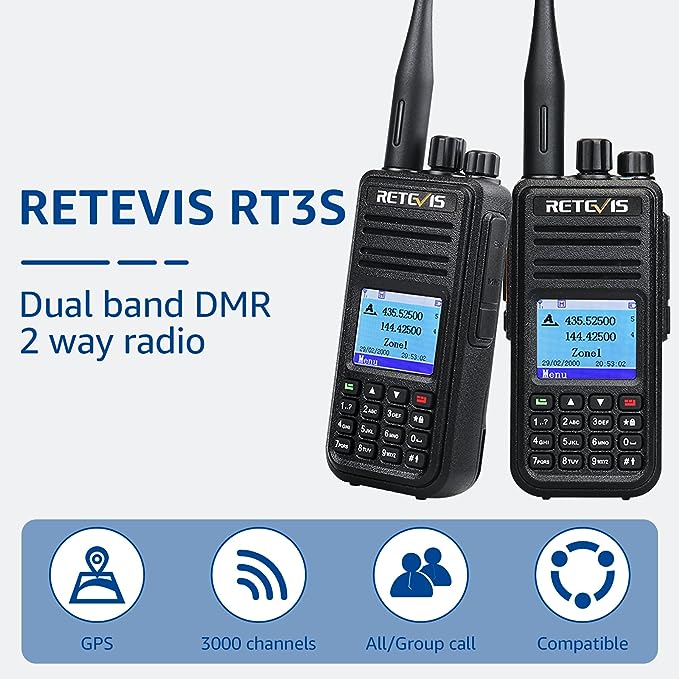

Retevis RT3S Dual Band DMR Walkie Talkie
RT3S dual band digital radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies for easy migration to digital technology.
Main Feature:
Dual Band
This two way radio features UHF and VHF frequency; Basic coverage of the frequency range of the 2m and 7cm bands; You need not to buy and carry both two VHF or UHF radios when you are travel. And it also help you connect more repeater at the same time and monitor two channel at same time.
2 time slot
Use time-division to cut 1 channel to 2 Independent channel; You can get more channel and can have two calls in one channel
Promiscuous
Choose Private/Group call match, then you can talk directly with the people in another group without the group restrictions;
Record/DTMF keypad
Recording function support you to record enough important call content and listen to each call content repeatedly; DTMF keypad helps you quickly operate multiple repeaters and rely on this radio as your everyday carry.
Compatible with Mototrbo TierⅠ&Ⅱ
This ham radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series radios using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF frequencies for easy migration to digital technology.
Note:RT3S can switch to VFO mode by long pressing the back button in MR mode.
-
- GPS
- Use time-division multiple-Access
- (TDMA)digital function
- Dual time slot for repeater
- Dual time slot for point to point
- Firmware upgradeable
- Lone worker
- Encryption function
- Compatible with Mototrbo TierⅠ&Ⅰ
- Single call,group call and all call
- Analog and digital combined
- Remote kill /stun and activate
- Up to 3000 channels
- Transmit interruption
- Group call match(promiscuous)
- Private call match(promiscuous)
- Record
- Emergency Alarm
- VOX
- TOT
Package Includes
- 1 x Retevis RT3S DMR Radio
- 1 x Battery
- 1 x Antenna
- 1 x Adapter
- 1 x Charger
- 1 x User's manual
- 1 x Belt clip
- 1 x Sling
| General specifications | |
| Frequency | 136-174&400-480MHz |
| Channels | 3000 |
| Frequency Stability | ±1ppm |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |

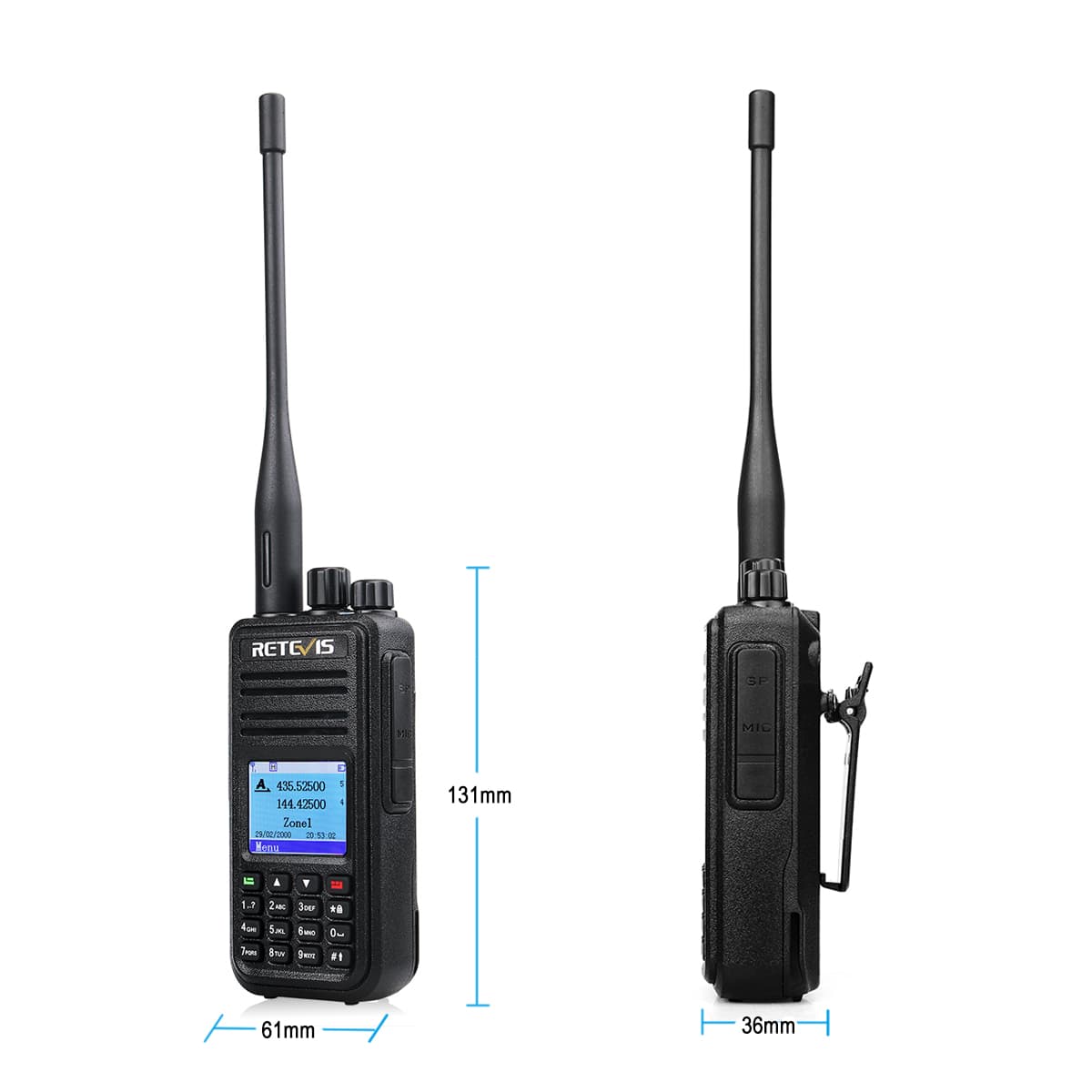

| Dimension | 131 x 61 x 36mm |
| Weight | 258g (with battery) |
| Battery Type | Li-ion |
| Battery Capacity | 2000mAh |
| Antenna Impedance | 50Ω |
| Audio Impedance | 1W@16Ω |
| Channel Spacing | 12.5KHz |
| Vocoder | AMBE+2™ |
| Transmitter | |
| Power | High≤5W, Low≤1W |
| Frequency Stability | ±1.0ppm |
| Adjacent Channel Power | ≤-60dB |
| Free Time Slot Power | TDMA:≤57dBm |
| Hum and noise | -40dB@12.5KHz |
| Spurious radiation | Antenna:9KHz-1GHz ≤-36dBm1GHz-12.75GHz ≤-30dBm |
| FM modulation mode | 11K0F3E@12.5KHz |
| 4FSK digital mode | 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW |
| Modulation maximum deviation | 2.5KHz@12.5KHz |
| Nonactive slot power | -57dBm |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Audio Response | +1~-3dB |
| Modulation BER(bit error rate) | ≤5% |
| Receiver | |
| Analog Sensibility | 0.2µV@12dB SINAD |
| Digital Sensibility | 0.25µV(BER:5%) |
| Adjacent Channel Selectivity | ≤-60dB@12.5KHz |
| Intermodulation | ≤60dB |
| Spurious Response | ≥70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ＜5% |
| Rated Audio Power | 1W |
| Modulation | ≥45dB@25KHz≥40dB@12.5KHz |
