- 10W duplexer GMRS repeater
High gain antenna + low loss cable
RB19P ultra-thin gmrs radio
NOAA+2000mAh large battery
emergency alarm
FREE shipping
RT97 GMRS Repeater and RB19P 6 pack – Farm Team Bundles
The combination of repeater + antenna + feeder + two way radio is a one-stop solution to your team communication problems.
RT97 repeater forms its own communication base station. RB19P (6 PACK) 3w gmrs two way radio, ultra-thin and portable convenient. Comes with NOAA and emergency alarm functions. The entire set can cover a range of 8km-15km (the actual distance depends on local conditions). Perfect for farms, fruit and vegetable farms, ranches, outdoor adventure groups, summer camps, schools, business communications and more.
Features：
Long distance calling range：
RT97 GMRS Repeater 10w duplexer + high gain antenna (MR004/MA09) + 15m low loss cable + RB19P 3w GMRS walkie talkie=8km-15km
Easy to operate and easy to carry：
The size of the RT97 repeater is only 310x283x170mm, and the net weight is only 1.66kg. It is very compact and easy to carry. The set includes a cigarette lighter, making it easier to carry around. LCD display, more convenient to use. And there are up and down keys to help you change channels and CTCSS/DCS tones.
RB19P has an ultra-thin profile and doesn’t take up much space when carried around. The display and buttons adjust volume and channels.USB-C charging, easy charging
More suitable for farm/ranch design：
NOAA, VOX, emergency alarm.
NOAA: When there is severe weather such as hurricanes, you can be informed in advance and respond in time to reduce losses caused by the weather.
VOX: After starting, you don’t need to press the PTT button to make a call. There is no need to touch the two way radio frequently when working, which improves work efficiency.
Emergency alarm: When you encounter danger or cannot handle the problem, you will be notified in time to protect your personal safety.
Retevis RB19P NOAA GMRS Radio
- 30 GMRS channels
8 GMRS repeater channels
258 Privacy Codes - 50 CTCSS and 208 DCS give you more secure calls and block interference.
The large 2000mAh battery supports 120 hours of standby time and 16-20 hours of continuous use.
Emergency alarm - local + remote alarm to ensure the safety of your outdoor activities.
11 NOAA channels
0-9 VOX levels optional, hands-free
0-9 Squelch Level Selectable - Allows you to adjust the squelch level according to the usage environment for clear communication.
TOT
keypad lock
Power display
Busy channel lock
Retevis RT97 GMRS repeater
10W high power/3W low power repeater
16 channel capability
Channels preconfigured as 8 wideband and 8 narrowband GMRS repeater pairs
Independently receive and send private tone options via PC software
Broadband/narrowband selection via PC software
High/low transmit power selection via PC software
Adjust noise squelch level via PC software
Adjust repeater delay (hang) time via PC software
Keyboard lock function
Compatible with all Retevis repeater-enabled GMRS phones and handheld devices

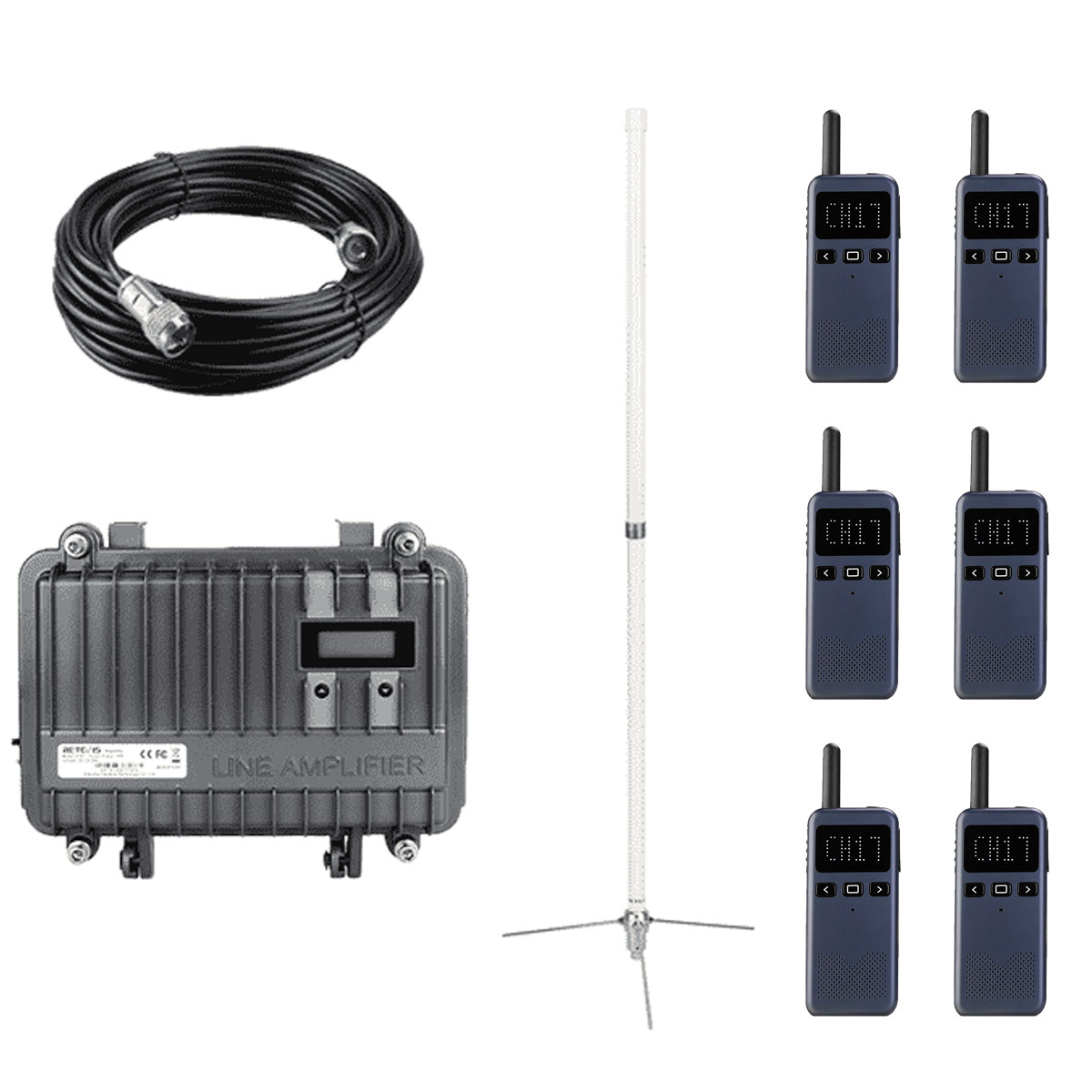

Package includes
1X RT97 GMRS Repeater
1X MR004 6dBi High Gain GMRS antenna/MA09 7.2 dBi high-gain antenna
1X 15 meters 50-3 Pure Copper Low Loss Coax Cable
6X RB19P 3W GMRS two way radio
1X use’s Manual
Retevis RT97 GMRS repeater
Technical parameters:
| Specifications | |
| Frequency Range | GMRS(GMRS/TX: 462.5500/RX：467.5500) |
| Channel Capacity | 16CH |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V ~24V |
| Operating Temperature | -30°C~ +60°C |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 260*210*70mm |
| Weight | 1.66kg |
| Transmitter | |
| Intermediate Frequency | 160MHz / 465MHz |
| Power Output | ≤10W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Intermediate Frequency | 150MHz / 455MHz |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
Retevis MR004 gmrs antenna
| Brand | Retevis |
| Model | MR004 |
| Color | Silvery White |
| Frequency | 462-467MHz |
| Gain | 6dBi |
| Support Power | 100W |
| S.W.R | <1.2 |
| Element | 3 |
| Length | 45.7inch(116cm) |
| Weight | 0.748kg |
MA09 Size: 950*120*105mm
Specification:
|
Frequency |
462~467MHz |
|
VSWR |
＜1.5 |
|
Impedance |
50Ω |
|
Gain |
4.5/7.2Bi |
|
Polarization |
Vertical |
|
Maximum power input |
200W |
|
Horizontal beam width |
360° |
|
Vertical beam width |
30º / 19º |
|
Connector |
SL16-K |
|
Radome material |
fiberglass |
|
Material of hardware-supplied |
aluminum alloy |
|
Hold pole diameter |
Ø30～Ø62 mm |
|
Suitable for models |
Retevis RT97 |
|
Weight |
1291g |
RB19P Technical parameters:
| GENERAL | Frequency Range | GMRS |
| Rated Voltage | 3.7V DC | |
| Memory Channel | 30 | |
| Battery | 2000mAh | |
| Frequency Sensitivity | ±0.5ppm | |
| Antenna Impendance | 50Ω | |
| Operation Temperature Range | -30℃~+60℃ | |
| TRANSMITTER | RF power | ≤3W |
| Modulation type | FM(F3E) | |
| Modulation distortion | <5% | |
| Max FR.Deviation | ≤5KHz | |
| Spurious Radiation | ≤7.5μW | |
| Emission Current | ≤1800mA | |
| Preemphasis Character | Per Octave 6dB | |
| RECEIVER | Sensitivity | ＜0.16μV(12dB SINAD) |
| Itermodulation Interference Resistance | ≥60dB | |
| Receiving Current | ≤300mA | |
| Standby Current | ≤20mA | |
| Audio distortion | <5% | |
| Audio power | ≥300mW |
