*Retevis RT97P full-duplex mini base station mobile digital repeater
*MA01 3.5dBi(VHF)/4dBi(UHF) high gain Omni directional base station antenna
*15 meters 50-3 Pure Copper Low Loss Coaxial Extend Cable
FREE SHIPPING

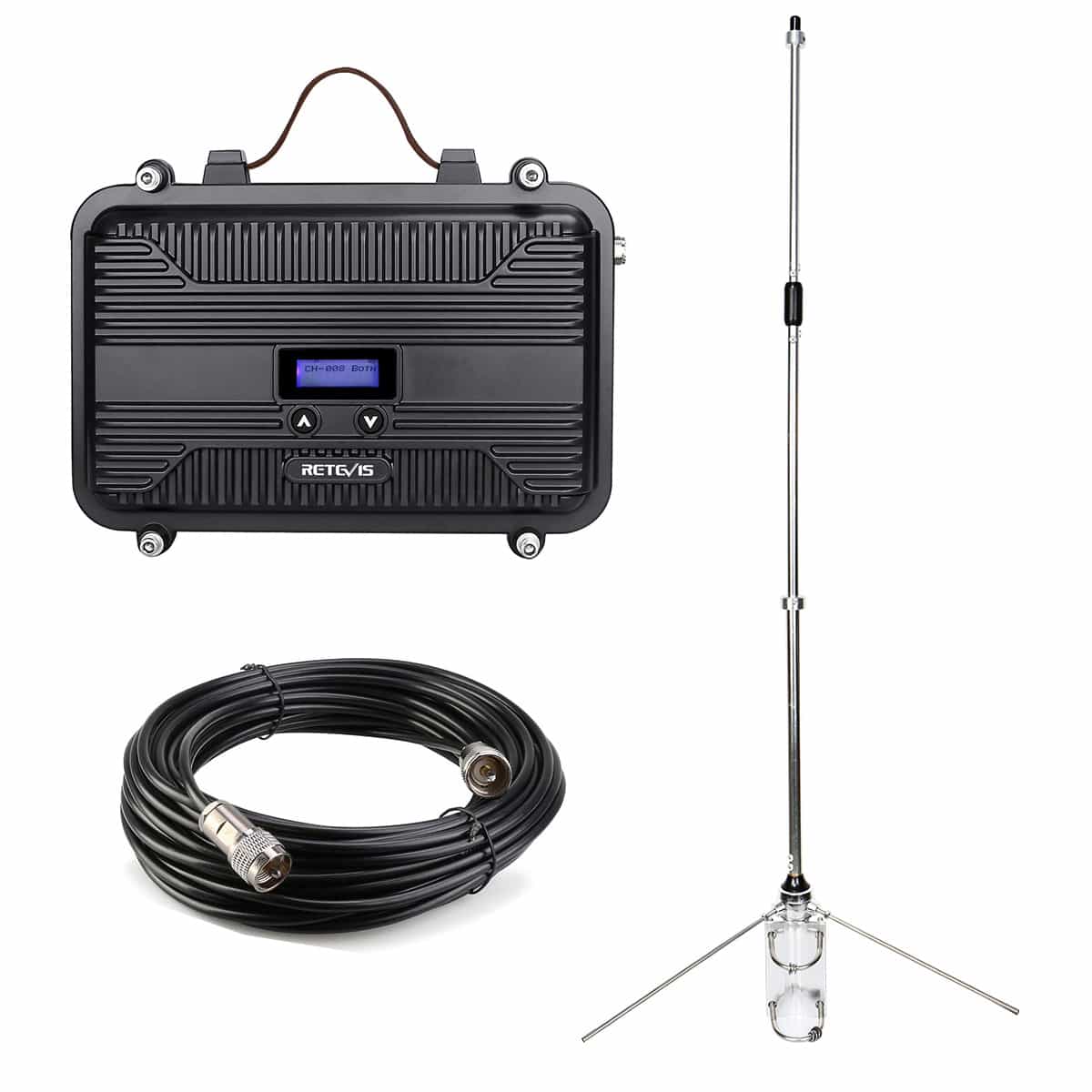

RT97P DMR Digital Repeater Bundles with cable and antenna
Retevis RT97P DMR Digital Repeater Bundles is a complete base station solution set, including Retevis RT97P digital repeater, MA01 high gain antenna, and 15meters pure copper feeder cable. You can use it directly, no need other accessories.
Features:
1. Frequency: 【VHF/TX:162.6125/RX:152.6125】
【UHF/TX:463.3125/RX:453.3125】
【Customize】
2. Output power: 10W.
3. 3.5dBi(VHF)/4dBi(UHF) High Gain Professional Omni-Directional Aluminum Base Station Antenna for digital Repeater Base Station with SL16 Connector.
4. Original package include Car charger cable, you can use this repeater in your car.
5. Support Multi-charger, not only provide the car charger, but also provide the DC12V~24V power, very convenient.
6. LCD display will help you know the settings.
7. Super Gainer Low Loss 50-3 pure copper Coaxial Cable, minimize signal loss and make communication better.
8. The RT97P digital repeater bundles can be installed directly, no need to prepare additional accessories, very convenient.
9. Mini digital repeater, small size 280×210×75mm. Very small and easy to carry, you can use it easily.
10. the best choice for your first digital repeater, fit for extend business safety long range communication, ham built digital base sation and many other long distance private communication needs.
11.It is not a standing stock and takes 10-15 days to be shipped. Customization frequency requires two weeks to be shipped.
Package Include:
1 x RT97P DMR Repeater
1 x Charger
1 x Power Supply
1 x Car Charger Cable
1 x Programming Cable
1 x User Manual
1 x 15m 50-3 Pure Copper Extend Cable
1 x MA01Antenna
RT97P digital repeater
Main Technological Specification
Frequency | UHF:TX 463.3125MHz / RX 453.3125MHzTX / VHF162.6125MHz / RX 152.6125MHz /136-174MHz/400-470MHzNote: Transmit and receive frequencies to be customized |
Standard form | DMR/FM/DMR+FM |
Channel Capacity | 8CH |
Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
Operating Temperature | -30℃~+60℃ |
Operating Voltage | DC12V-24V |
Antenna Impedance | 50Ω |
Frequency Stability | ±0.5ppm |
Dimension | 280×210×75mm |
Weight | 2624g |
Transmitter
Output power | 10W |
Transmission Current | ≤2.5A |
FM Modulation | 11kφF3E/16kφF3E |
Digital modulation | 4FSK |
Modulation Distortion | ≤5% |
FM Noise | ≥40dB(25KHz)/≥35dB(12.5KHz) |
Adjacent Channel Power | ≥70dB(25KHz)/≥60dB(12.5KHz) |
Audio Response | +1~-3dB |
DMR Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver
Analog receive Sensitivity | 0.25μν(12dB)SINAD |
Digital receive sensitivity | -120dBm (BER≤5%) |
Adjacent channel selectivity | ≥70dB(25KHz)/≥60dB(12.5KHz) |
Inter-modulation | ≥60dB/≥65dB |
Signal imitation | ≥70dB |
Audio Response | +1~-3dB |
Audio distortion | <5% |
FM Noise | ≥45dB(25KHz)/≥40dB(12.5KHz) |
MA01 High quality aluminium alloy antenna
Brand | Retevis |
Model | MA01 |
Color | Silvery White |
Frequency | 135-174MHz/390-470MHz |
Gain | 3.5dBi(VHF)/4dBi(UHF) |
Support Power | 100W |
S.W.R | <1.2 |
Element | 3 |
Length | 84cm(VHF)/45.7inch(116cm)(UHF) |
Weight | 0.748kg |
CA31 Pure copper cable
It is extendable that boosts the signal of your repeater significantly
Super Gainer Low Loss Coaxial Cable
Suitable for Retevis RT97 repeater
Material: pure copper
Impedance: 50Ω
Return loss: VHF≥20dB UHF≥15dB
Connector plug: SL16
Cable diameter: 5mm / 0.2inch
Weight: 660g
