IP67 Waterproof Long Range Radio Solution Set
ALL FREE SHIPPING to USA(Except for pure batteries) save 20 over 300,save 50 over 500 ×

IP67 Waterproof Long Range Radio Solution Set

In Stock Unavailable
SKU: A9150C-C9073A-C9123A-A9137A*12

Regular price $1,199.99

UP to 12KM long talking distance, IP67 waterproof radio solution set fit for buildings, Hotels, churches, business, etc.

FREE shipping


Retevis Waterproof Long Range radio solution set

This Long range radio solution set can reach up to 12km, with IP67 waterproof function, fit for outdoor long calling requirements. Such as railway maintenance, infrastructure, mining, etc.

Features:

Waterproof handheld walkie talkie

Retevis RT87 handheld walkie talkie with 5W output power, IP67 waterproof and dustproof, the screen display more convenience for using, unique appearance design, if without repeater, the call distance can reach about 3.0km, plus the use of the Retevis RT97 repeater set, the 5W Retevis RT87 waterproof and dustproof walkie talkie can easily reach the call distance 12km, from 3.0km to 12km, this is the subversion of the distance definition of the 5W handheld radio by Retevis solution.

High-Quality Repeater

Retevis RT97 repeater with mini appearance can be placed in any corner without affecting the overall layout. Simple internal structure, complete structure, safe and efficient, make the handheld walkie talkie get longer calling distance.

Complete Radio Solution Set

This radio solution set comes with an antenna and 15m Pure Copper feeder cable, can use directly for the Retevis RT97 repeater, is easy to install, and easy to operate.

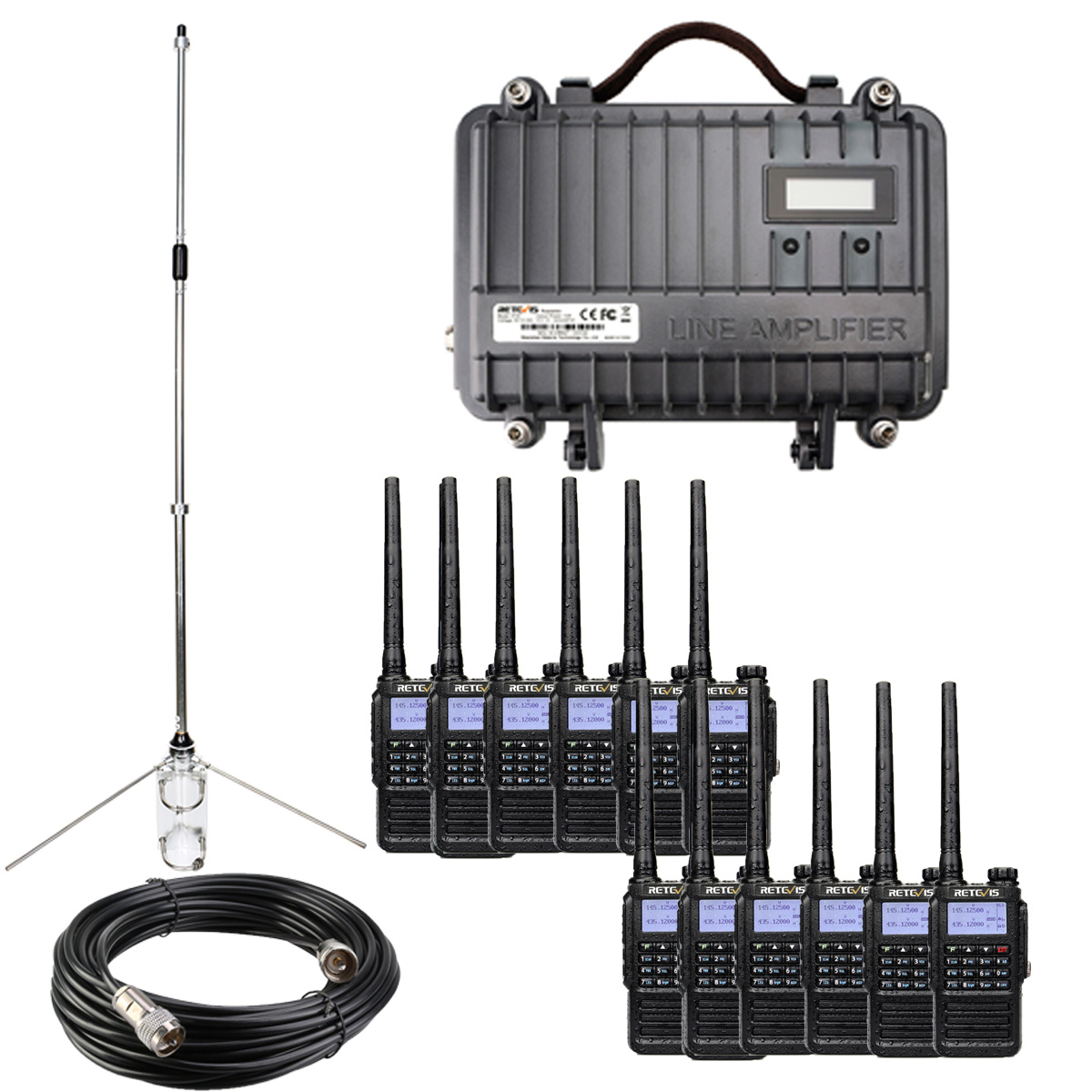

Package Include:

  • 1 x Retevis RT97 Repeater
  • 12 x Retevis RT87 walkie talkie
  • 1 x Omni-Directional Base Station Antenna
  • 1 x 15m cable

Retevis RT97 Technical parameters:

Specifications
Frequency Range 400-470MHz
Channel Capacity 16CH
Channel Spacing ±12.5KHz Narrow/±25kHz Wide
Operating Voltage DC12V ~24V
Operating Temperature -30°C~ +60°C
Frequency Stability ±2.5ppm
Antenna Impedance 50Ω
Dimension 260*210*70mm
Weight 1.66kg
Transmitter
Intermediate Frequency 465MHz
Power Output 10W
Modulation F3E
Spurious Emission -60dB or less
Maximum Frequency Deviation Wide: ±5kHz Narrow: ±2.5kHz
Audio Distortion 5% or less
FM Noise Wide:≤45dB Narrow :≤40dB

Receiver
Intermediate Frequency 455MHz
Sensitivity(12dB SINAD) 0.2μV (Wide) 0.25μV (Narrow)
Squelch Sensitivity 0.15μV (Wide) 0.2μV (Narrow)
Adjacent Channel Selectivity ≥ 70dB (Wide) / ≥65dB (Narrow)
Intermodulation ≥ 55dB
Spurious Rejection ≥ 55dB
Image Rejection ≥ 55dB
FM Ham and Noise ≤-45dB(Wide) / ≤ -40dB(Narrow)
Modulation Type F3E
Operating Bandwidth ≤±7KHz / ≤±5KHz
Audio Distortion ≤ 5%

Retevis RT87 IP67 handheld walkie talkie Technical parameters

General
Frequency VHF:136-174MHzUHF:400-480MHz
Channel capacity 128
Operating Voltage DC7.2V(Li-ion)
Frequency Stability ±2.5ppm
Antenna impedance 50 Ω
Size(with battery, without antenna) 114x54x32mm/4.89x2.13x1.26in
Weight (with battery and antenna) 194g/6.84oz
Transmitter
Output power H≤5W,L≤1W
Modulation mode 16KF¢3E/11K¢F3E
Maximum deviation ≤5KHz/≤2.5KHz
Adjacent Ch Power ≤-65dB/≤-60dB
Spurious radiation ≤7uW
Pre-emphasis characteristics 6dB
Current ≤1.6A
CTCSS-DCS Deviation 0.5KHz±0.2KHz,0.4KHz±0.2KHz
Intermediation Sensitivity 5-12mV
Intermediation distortion <5%
Receiver
RF Sensitivity -122dBm (12dB SINAD)
Audio power 1W
Audio distortion <5%
Blocking ≥85
Intermediation ≥60dB ≥55dB
Selectivity ≥65dB ≥60dB
Spurious Rejection ≥60dB

Aluminum Alloy Omni-Directional Antenna Specification:

Brand          Retevis
Model MA01
Color Silvery White
Frequency 390-470MHz
Gain 4dBi
Support Power 100W
S.W.R <1.2
Element 3
Length 45.7inch(116cm)
Weight 0.748kg

Retevis 50-3 Pure Cupper Low Loss Coaxial Extend Cable 15 Meter

Super Gainer Low Loss Coaxial Cable
Suitable for Retevis RT97 repeater
Material: pure copper
Impedance: 50Ω
Return loss: VHF≥20dB UHF≥15dB
Connector plug: SL16
Cable diameter: 5mm / 0.2inch
Cable Length: 15 meter

Note:If the 15m cable length can't meet your needs,welcome to tell us your requirement,we supply customize length service.
