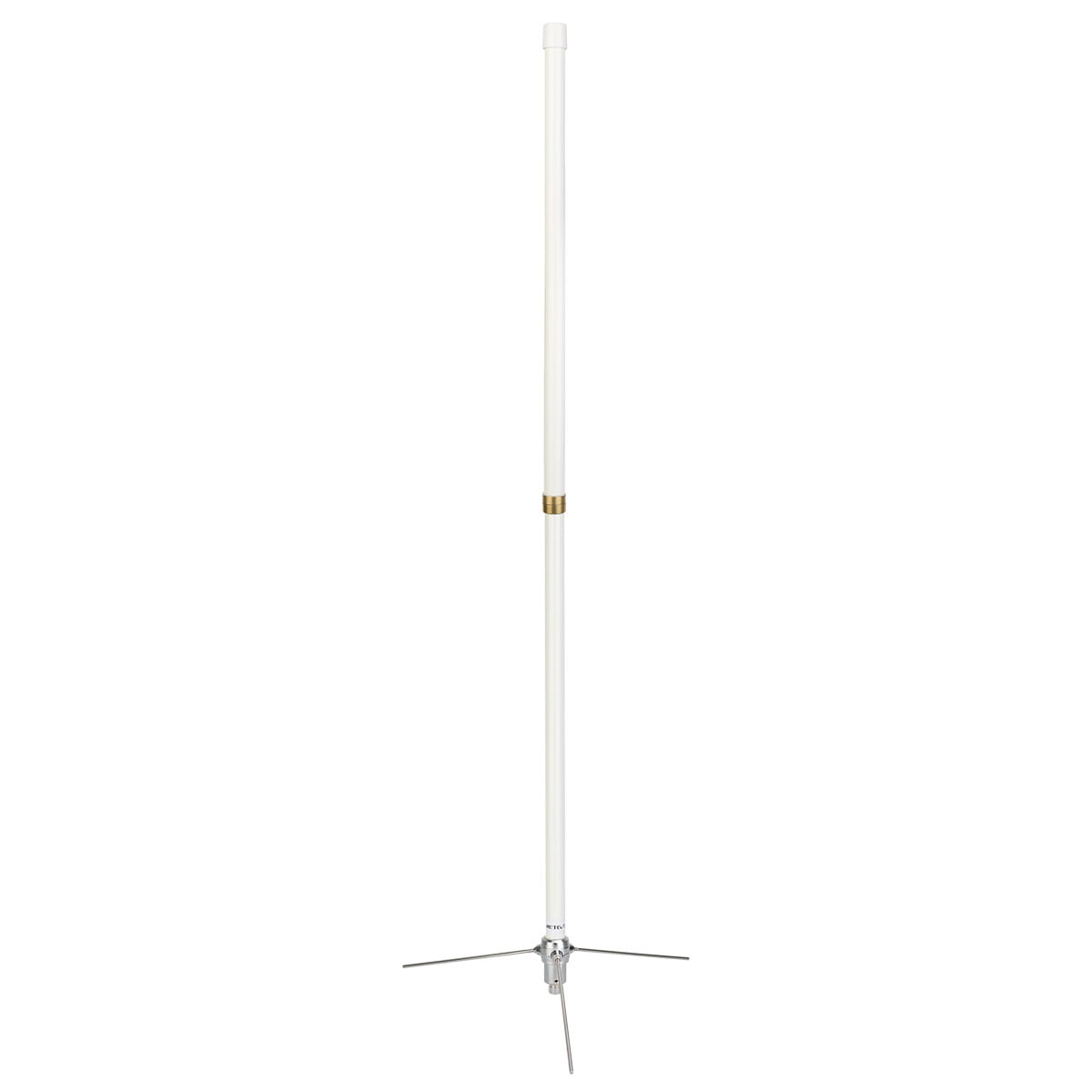

MA09 7.2 dBi FRP high-gain antenna has the characteristics of high gain, wide bandwidth, low VSWR, waterproof, anti-corrosion, high-strength and high-quality FRP package, and strong wind resistance.
It is an ideal base station antenna, which can be used with RT97/RT97S to extend the communication range.
free shipping
For remote zip code areas, the logistics will charge an additional remote fee.
MA09 GMRS high-gain fiberglass omnidirectional antenna, supports GMRS frequency band
It has the characteristics of high gain, wide bandwidth, low VSWR, waterproof, anti-corrosion, high-strength and high-quality fiberglass package, and strong wind resistance. It is an ideal base station antenna. Communication antenna, antenna design style, easy to disassemble and use.
Match with RT97/RT97S to extend the communication range.
Size: 950*120*105mm
Specification:
|
Frequency |
462~467MHz |
|
VSWR |
＜1.5 |
|
Impedance |
50Ω |
|
Gain |
4.5/7.2Bi |
|
Polarization |
Vertical |
|
Maximum power input |
200W |
|
Horizontal beam width |
360° |
|
Vertical beam width |
30º / 19º |
|
Connector |
SL16-K |
|
Radome material |
fiberglass |
|
Material of hardware-supplied |
aluminum alloy |
|
Hold pole diameter |
Ø30～Ø62 mm |
|
Suitable for models |
Retevis RT97 |
|
Weight |
1291g |
Package Includes:
1 x MA09 Antenna
2 x Fixing ring
2 x Fixing screw
Specification:
|
Frequency |
462~467MHz |
|
VSWR |
＜1.5 |
|
Impedance |
50Ω |
|
Gain |
4.5/7.2Bi |
|
Polarization |
Vertical |
|
Maximum power input |
200W |
|
Horizontal beam width |
360° |
|
Vertical beam width |
30º / 19º |
|
Connector |
SL16-K |
|
Radome material |
fiberglass |
|
Material of hardware-supplied |
aluminum alloy |
|
Hold pole diameter |
Ø30～Ø62 mm |
|
Suitable for models |
Retevis RT97 |
|
Weight |
1291g |
