RT97 GMRS Repeater
15m CA31 low-loss cable
MA09 high-gain antenna 7.2 dBi(specially equipped with GMRS version)
It is the best choice for building home base stations, mobile base stations, portable base stations, outdoor and temporary emergency base stations.
FREE shipping
Retevis RT97 GMRS Compact Repeater Mobile Base Station Bundle
Retevis RT97 GMRS 10W Compact Repeater Bundle can be used to extend the range of your walkie-talkie, maximize the range of your walkie-talkie and improve the quality of your calls. This mobile radio base station with 16 channel full duplex mini radio repeater, solid portable base station for home use, can be used to build home base station, mobile base station, portable base station, outdoor and temporary emergency base station. (farm/ranch/off-road)（According to terrain factors, the farthest can reach17km -- 20km).
Please note that the feeder length supports customization. Please contact us for a quote on other lengths.
Feature:
This Retevis RT97 GMRS repeater is equipped with a 7.2 dBi high-gain fiberglass antenna (GMRS special version) and a 15-meter pure copper low-loss feeder. The feeder can be used to directly connect the Retevis RT97 repeater and the Retevis MA09 antenna without other accessories.It is a complete compact repeater bundle.
RT97 GMRS Small Compact Repeater
The size of the RT97 repeater is only 310x283x170mm, and the net weight is only 1.66kg. It is very compact and easy to carry. It is very suitable for outdoor use and for families, individuals and groups to build mini base stations to expand your radio communication range.The frequency is the most used GMRS (GMRS/TX: 462.5500/RX: 467.5500)
LCD display, more convenient to use. The display can help you easily understand TX and RX frequencies, CTCSS/DCS codes and bandwidth settings, and there are up and down keys, which can help you change channels and CTCSS/DCS tones.
Low Loss Extension Cable
This Retevis RT97 repeater bundle comes with 15m pure copper low loss cable, it can help you minimize signal attenuation and let you get the best limited quantity transmission effect.

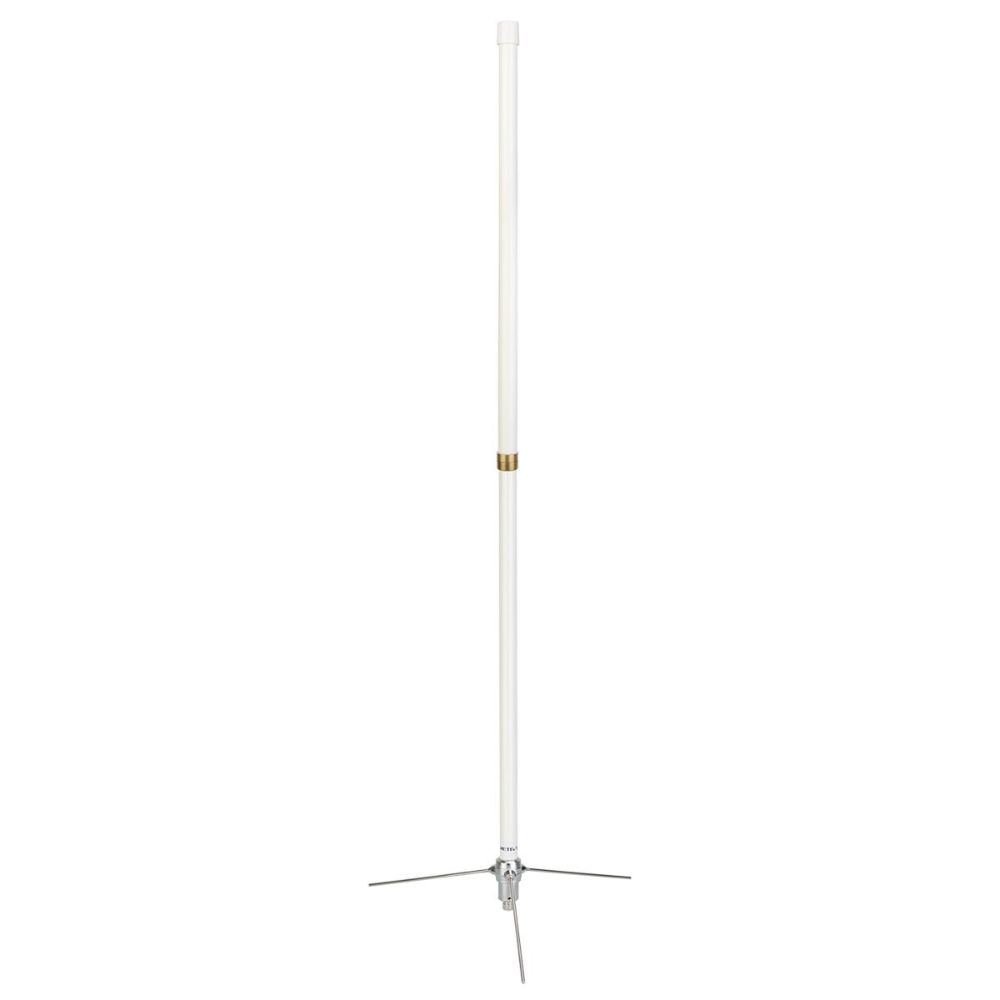

High Gain Fiberglass Antenna
Equipped with 7.2dBi high-gain omnidirectional base station antenna, Retevis MA09 antenna has low standing wave ratio, waterproof, anti-corrosion, high-strength and high-quality glass fiber reinforced plastic packaging, and has strong wind resistance characteristics. For the construction of base stations, Retevis MA09 antenna is a Ideal communication antenna, and easy to disassemble and use.

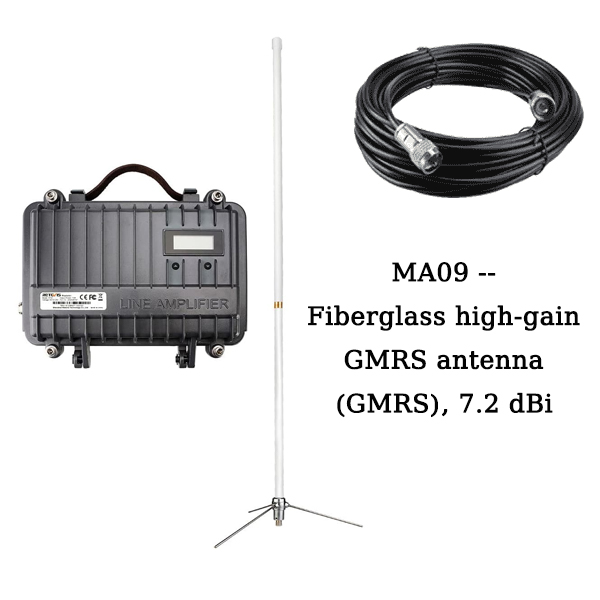

The package includes
1x Retevis RT97 GMRS repeater
1x 15m CA31 Low Loss Cable
1x MA09 high gain base station antenna
1x User Manual
Technical parameters:
| Specifications | |
| Frequency Range | GMRS/TX:462.5500/RX:467.5500 / UHF/TX:463.3125/RX:453.3125 / VHF/TX:162.6125/RX:152.6125 / Customize |
| Channel Capacity | 16CH |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V ~24V |
| Operating Temperature | -30°C~ +60°C |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 260*210*70mm |
| Weight | 1.66kg |
| Transmitter | |
| Intermediate Frequency | 160MHz / 465MHz |
| Power Output | ≤10W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Intermediate Frequency | 150MHz / 455MHz |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
MA09 Size: 950*120*105mm
Specification:
|
Frequency |
462~467MHz |
|
VSWR |
＜1.5 |
|
Impedance |
50Ω |
|
Gain |
4.5/7.2Bi |
|
Polarization |
Vertical |
|
Maximum power input |
200W |
|
Horizontal beam width |
360° |
|
Vertical beam width |
30º / 19º |
|
Connector |
SL16-K |
|
Radome material |
fiberglass |
|
Material of hardware-supplied |
aluminum alloy |
|
Hold pole diameter |
Ø30～Ø62 mm |
|
Suitable for models |
Retevis RT97 |
|
Weight |
1291g |
Retevis RT97 Programming Software
Retevis RT97 English Manual
Retevis RT97 Win10/7/8 XP Driver
Retevis RT97 Win11 Driver
