*RT97 Compact GMRS Repeater(GMRS/TX: 462.5500/RX:467.5500)
*MR004 6dBi High Gain GMRS antenna(462-467MHz)
*15 meters 50-3 Pure Copper Low Loss Coaxial Extend Cable
FREE shipping

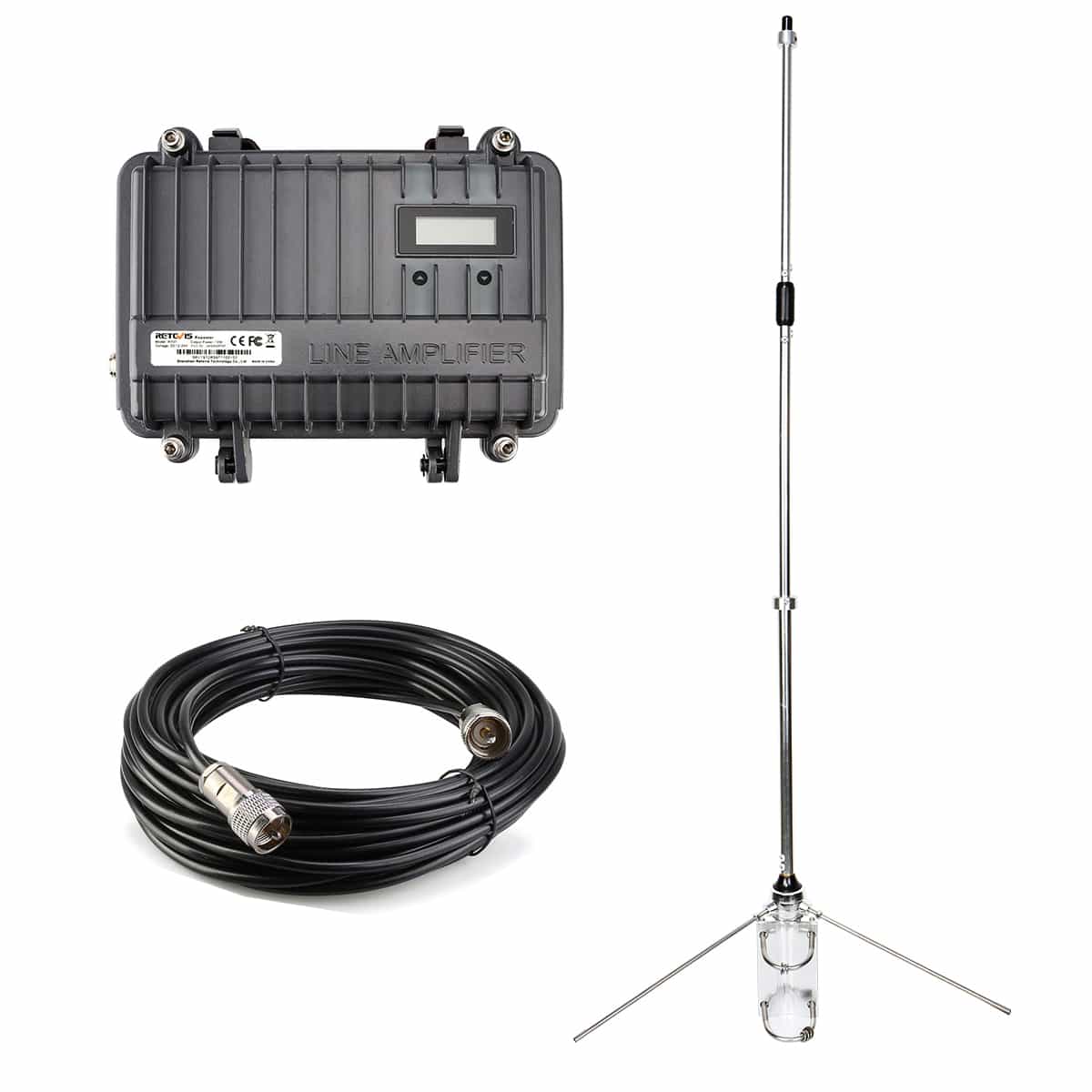

Retevis RT97 GMRS Repeater Bundles
This Retevis RT97 GMRS repeater bundle is a complete GMRS base station bundle, it includes a 10W Retevis RT97 mini compact GMRS repeater, MR004 6dBi high gain GMRS antenna, and 15 meters 50-3 pure copper low loss coaxial extension cable, you can use it directly to build your own GMRS base station to extend your GMRS handheld and GMRS mobile talking range.
Features:
Mini and Compact GMRS repeater
Retevis RT97 GMRS repeater size is only 310x283x170mm, the net weight is only 1.66kg, it is very mini and compact, convenient to carry, make it very useful for outdoor use and build mini base stations to extend your radio talking range.
GMRS Frequency
The Retevis RT97 repeater is GMRS version, TX: 462.5500/RX:467.5500, you can use it directly for your GMRS handheld and GMRS mobile radio units to extend your radio talking range.
High power GMRS repeater bundle
The Retevis RT97 GMRS repeater Rated output power is 10W, it is the best selling GMRS repeaters in the market, can double your GMRS radio talking range.
GMRS Antenna
This Retevis RT97 GMRS bundle with 462-467MHz GMRS antenna is fit for the Retevis RT97 GMRS repeaters, this MR004 6dBi high gain GMRS antenna can best match Retevis RT97 GMRS repeater, help you get the best base station expansion effect.
Super Gainer Low loss feeder cable
This Retevis RT97 GMRS repeater with 15 meters 50-3 pure copper cable, can best minimize signal attenuation during transmission,
Multi charging methods to support multi-scenario use
This Retevis RT97 GMRS Repeater includes DC12V~24V power charger cable and car charger cable, you can use the car charger cable for mobile place and outdoor, like at taxis, trucks, outdoor car trips, fleet, to help your radio get a longer calling distance; The Direct charger cable helps you charge in buildings, farms, hotels, photography, mountain top, and many other fixed places, Retevis RT97 GMRS repeater support 7/24 working.
LCD display GMRS Repeater
Retevis RT97 GMRS repeater with LCD display, the display can help you know the TX and RX frequencies, CTCSS/DCS code, bandwidth settings easily, there also have Up and down keys, which can help you change channels and CTCSS/DCS tones without computer programming, which is very convenient for outdoor use. You can also use the key to lock/unlock the keypad.
A complete GMRS repeater solution kit, no need for other accessories.
The 50-3 feeder cable can connect the Retevis RT97 GMRS repeater and the MR004 antenna directly to help you build your own GMRS base station, easy install, no need other accessories, which is very convenient.
Package Include:
- 1 x Retevis RT97 GMRS Repeater
- 1 x Programming Cable
- 1 x 15m 50-3 low loss Extend Cable
- 1 x MR004 GMRS Antenna
Retevis RT97 GMRS repeater
Technical parameters:
Specifications | |
Frequency Range | GMRS(GMRS/TX: 462.5500/RX:467.5500) |
Channel Capacity | 16CH |
Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
Operating Voltage | DC12V ~24V |
Operating Temperature | -30°C~ +60°C |
Frequency Stability | ±2.5ppm |
Antenna Impedance | 50Ω |
Dimension | 260*210*70mm |
Weight | 1.66kg |
Transmitter | |
Intermediate Frequency | 160MHz / 465MHz |
Power Output | ≤10W |
Modulation | F3E |
Spurious Emission | -60dB or less |
Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
Audio Distortion | 5% or less |
FM Noise | Wide:≤45dB Narrow :≤40dB |
Receiver | |
Intermediate Frequency | 150MHz / 455MHz |
Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
Intermodulation | ≥ 55dB |
Spurious Rejection | ≥ 55dB |
Image Rejection | ≥ 55dB |
FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
Modulation Type | F3E |
Operating Bandwidth | ≤±7KHz / ≤±5KHz |
Audio Distortion | ≤ 5% |

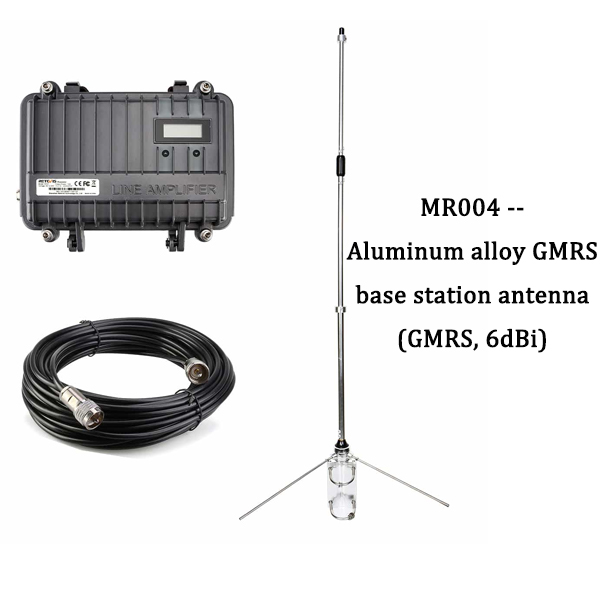

Retevis MR004 gmrs antenna
Brand | Retevis |
Model | MR004 |
Color | Silvery White |
Frequency | 462-467MHz |
Gain | 6dBi |
Support Power | 100W |
S.W.R | <1.2 |
Element | 3 |
Length | 45.7inch(116cm) |
Weight | 0.748kg |
Retevis CA31 15m 50-3 pure copper cable
It is extendable that boosts the signal of your repeater significantly
Super Gainer Low Loss Coaxial Cable
Suitable for Retevis RT97 repeater
Material: pure copper
Impedance: 50Ω
Return loss: VHF≥20dB UHF≥15dB
Connector plug: SL16
Cable diameter: 5mm / 0.2inch
Weight: 660g
