RT54 UHF DMR Radio

In Stock Unavailable
SKU: A9161Z

Regular price $139.99

*Detachable speaker

*Digital and analog

*High sound quality

FREE shipping

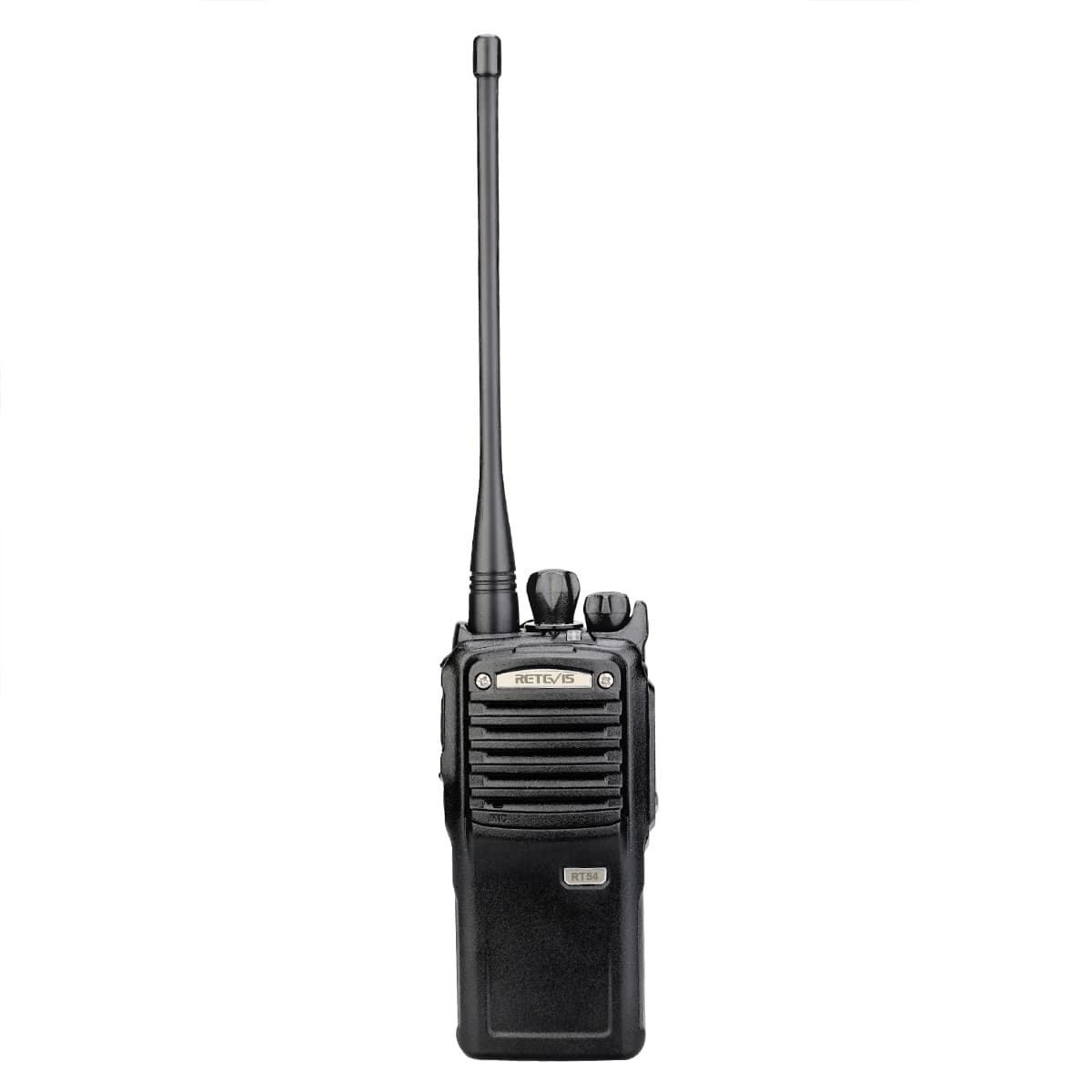

Retevis RT54 Speaker Detachable DMR walkie talkie

Retevis RT54 DMR radio Speaker Detachable, UHF400-470MHz, 5W, 1600mAh Rechargeable battery, Retevis RT54 Professional DMR Radio is Digital and analog Two Way Radio fit for Manufacturing, heavy industry, logging and other dusty and sandy working environments.

Features:

Detachable speaker
Remove and clean the speaker, guaranteed sound quality.

UHF Full-Frequency Radio
Frequency range:UHF400.000-470.000MHz

Digital and analog compatible
Support DMR digital and analog two communication modes to ensure that the original analog products smooth transition to digital products to meet different communication needs

Digital signaling function
Rich calling modes that support DMR protocol, including single call, group call and all call; supports remote inhibit function and other applications

High sound quality
This digital two-way radio uses advanced AMBE +2TM voice processing technology to achieve higher quality

High/low power switch
2W/0.5W power switch, Meeting the power requirements of different call distances to save more energy

Supports the use of the repeater
Side buttons can be customized without changing the user’s operating habits

Package includes:

  • 1 x Retevis RT54 DMR walkie talkie
  • 1 x Antenna
  • 1 x Battery
  • 1 x Belt Clip
  • 1 x Sling
  • 1 x Power Adapter
  • 1 x User Manual
Frequency range UHF:400-470MHz
Channel Capacity 16CH
Channel Spacing 12.5KHz
Operating Temperature -25℃~+60℃
Operating Voltage DC 7.4V
Antenna Impedance 50Ω
Microphone Impedance 2.2KΩ
Battery Li-ion DC7.4V 1600mAh
Dimension 135×53×33mm ( no including antenna)
Weight 316g

Transmission

Output power High:5W Low:1W
FM modulation 25/16K¢F3E 12.5K/8K¢F3E
4FSK digital modulation 12.5KHz for data:7K60FXD 12.5KHz for  data and voice :7K60FXE
Vocoder type AMBE++or SELP
Digital Protocol ETSI-TS102 361-1,-2,
Harmonic ≥70dB
Signal-to-noise Radio(wide/narrow) 25K≤-45 dB  12.5≤-40 dB
Rated audio Distortion ≥5%
Frequency Stability ±2.5ppm
Max Frequency Stability 12.5K≤-40dB

Reception

Sensitivity (12dB SINAD) Analog 25K≤-121dB  12.5K≤-119dB
Digital 0.3μV/BER5%
Signal-to-noise Radio 25K≥45 dB    12.5K≥40dB
Adjacent channel selectivity 25K≥65 dB   12.5K≥60dB
Intermediation (Wide/ narrow) 25K≥60 dB    12.5K≥55dB
Spurious Response Rejection ≥65 dB
Audio power 1W
Audio distortion <5%
Frequency Stability ±2.5ppm
Battery life under 5-5-90duty 14.8 hours(with 1600mAh Li-ion battery)
20.9 hours(with 1600mAh Li-ion battery)

Retevis RT54 Brochure

Retevis RT54 Programming Software

Retevis RT54 English Manual
