*50w+10w high power long distance radio bundle
*GPS function-more secure. Suitable for adventure and rescue operations
*Digital-Analog two modes
*recording function
*Supports TYPE-C charging
FREE SHIPPING

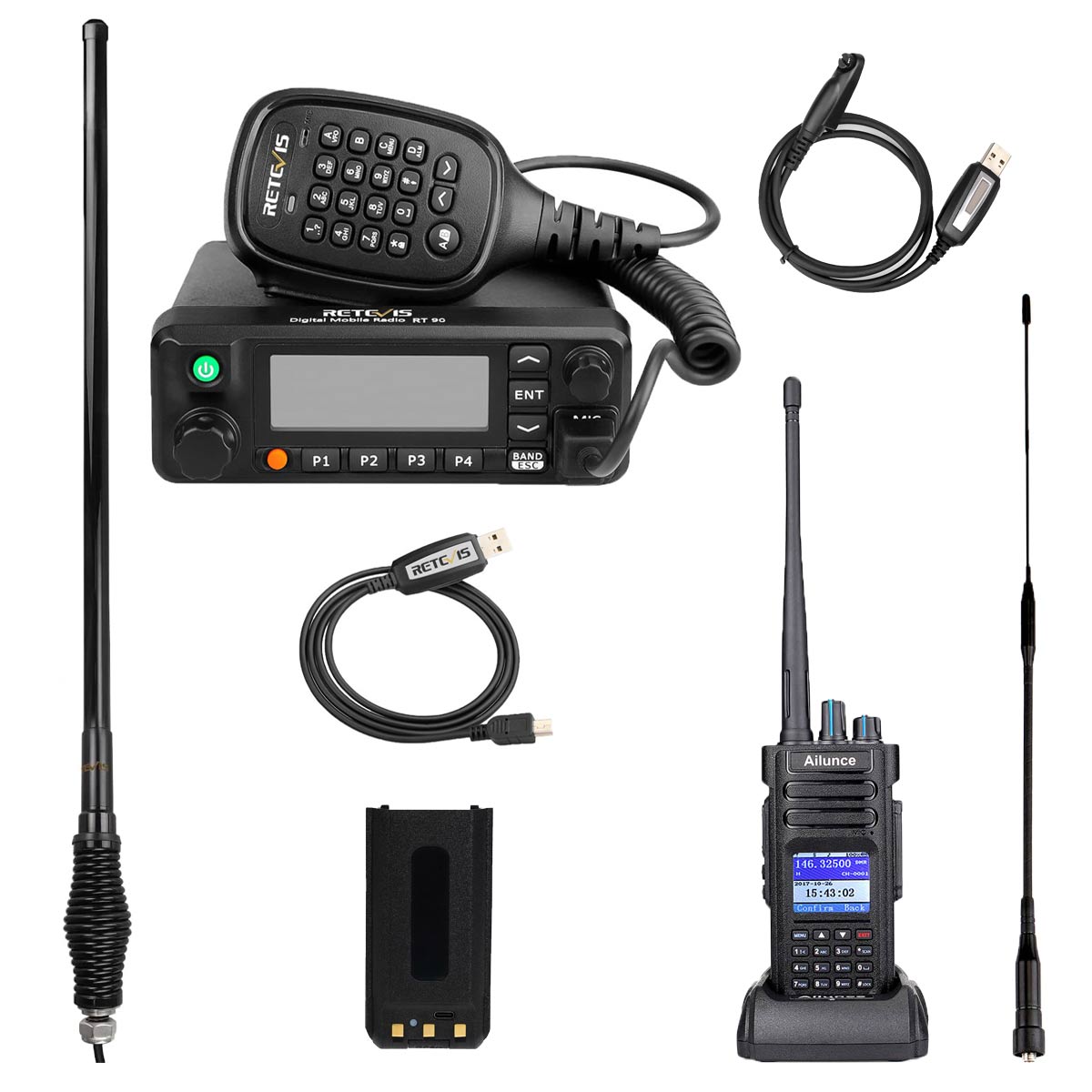

RT90 50W GPS DMR Radio With HD1-Adventure bundle
Retevis rt90 50w gps dmr mobile radio with hd1 10w gps two way radio. ideal for outdoor adventure and rescue teams. High power long range with MR400 heavy duty fiberglass antenna. GPS security performance can also be high outdoors.

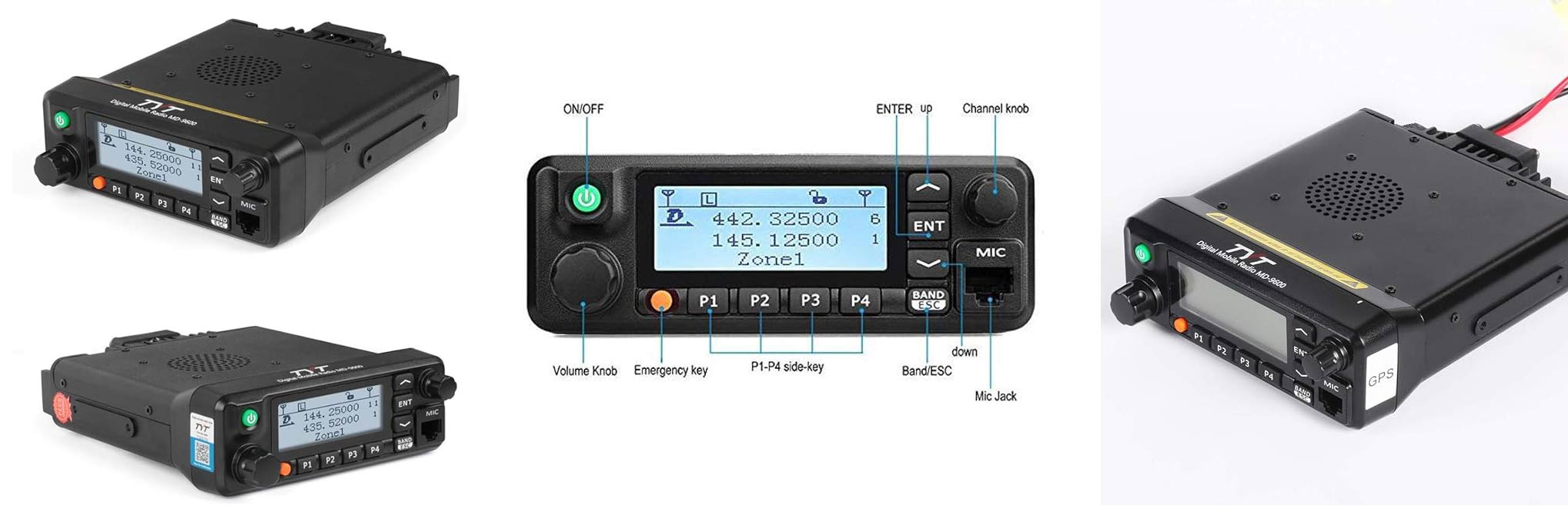

RT90 Feature:
- Output power: 50W
- Use TDMA digital function
- Compatible with Mototrbo Tier I &II
- Dual band, dual standby, dual display, dual time slot
- 250 zone, 3000 channel, 10000 contacts
- Digital mode and Analog mode
- Single call, group call and all call
- Emergency function
- Remote kill/stun/Activate
- Group match/single match
- Record function
- PC programmable function
- CTCSS.DCS encoding and decoding function
- PC password protection function
- Color LCD Display
- Programmable functional keys
- Low Voltage prompt
- Upgradeable by firmware
- TOT
- SQL Setting
- Scanning Function and priority scanning
- Monitor Function
- VOX Transmitting
- Lone Worker
- Time and zone setting
-
HD1 Specifications:
- GPS Function: Gives you lat long, altitude, bearing, and speed Support to text the information to another radio with the same DMR protocol.
- VFO mode: Supports VFO and Channel model switch easily via EXIT key.
- Group call match: Call freely without group restrictions.
- Dual time slot: Supports Dual time slot and point to point
- supports Type-C charging.
- ID Setting: Supports save and edit radio ID via keypad FM Function: Support receive signal from other radios when you listening radio
- Dual Band DMR Radio
- Analog and Digital Combined
- Compatible with Motorola Tier Ⅰ&Ⅱ
- 200000 Contacts
- 1000 Priority Contacts
- Dual Time Slot for Point to Point
- Firmware Upgrade-able
- IP67 Waterproof
- Scan:Time/Search/Carrier
- Lone Worker
- Single/Group/All call
- Remote kill/stun/activate
- Color LCD Display
- Transmit/Transceiver interruption
- CTCSS/DCS
- Analog Monitor
- Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
- VOX
- TOT
- Talk around
- Squelch
- Keypad Lock
- LED Indicator
- Password Lock
- Battery Save
- Voice Annunciation
Package includes:
1 x Retevis RT90 DMR Mobile radio
1 x HD1 GPS 10W DMR TWO WAY RADIO
1 x MR400 6.5 DBI Antenna
1 x User's manual
1 x long antenna for HD1
1 x spare battery for HD1
1 x program cable for RT90
1 x program cable for HD1
| General--RT90 | |
| Frequency Range(MHz) | VHF: 136-174Mhz UHF:400-480Mhz |
| Channel | 3000 |
| PLL Channel Spacing | 6.25/12.5/25KHz |
| Voltage Rating | DC 13.8V |
| Operating Temperature | -30℃~+60℃ |
| Storage Temperature | -30℃ ~+85℃ |
| Dimention | 143*50*175 mm |
| Compatible With American Military Standard | (MIL-STD-810C/D/E) |
| Transmitter | |
| RF Power Output | L:25W H:50W (VHF)L:25W H:45W (UHF) |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Modulation limited | +/- 2.5KHz @ 12.5 KHz +/-5.0KHz @ 25KHz |
| Conducted/radiated emission | -36 dBm ＜ 1GHz -30 dBm ＞ 1GHz ＜ 4GHz |
| Adjacent channel power | -60dB @12.5KHz -65dB @25KHz |
| Audio Response | +1dB ~ -3dB |
| Audio distortion | 3% |
| FM Modulation | 12.5KHz:11KOF3E25KHz:16KOF3E |
| 4FSK digital modulation | 12.5KHz only date:7K60FXD 12.5KHz date and audio:7K60FXE |
| Digital protocol | ETSI TS 102361-1,-2,-3 |
| Digital vocoder type | AMBE++ |
| Digital agreement | DMR |
| Receiver | |
| Frequency stability (-20℃+60℃,+25℃) | +/-1.0ppm |
| Digital Sensibility | 0.3uV/-117.4dBm (BER 5%)0.7uV/-110 dBm (BER 1%) |
| Analogue Sensibility | 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(20dB SINAD) |
| Rated audio | 5W |
| Adjacent Channel Selectivity | TIA603C:60dB@ 12.5 KHz ETSI: 60dB@12.5 KHz |
| Intermediation | TIA603C:65 dB ETSI:65dB |
| C0-Channel Rejection | 12dB @12.5KHz |
| Spurious Rejection | TIA603C:70dB ETSI:70dB |
| Audio distortion @ rated audio | ≤3% |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Audio response | +1dB~-3dB |
| Spurious emission | -57dBm@m ＜ 1GHz -47dBm@m ＜ 1GHz |
| Bolck | 84dB |
|
General specifications--HD1 |
|
|
Frequency |
136-174&400-480MHz |
|
Channels |
3000 |
|
Operating Temperature |
-30℃~+60℃ |
|
Input |
7.4V 2.5A Max |
|
Dimension |
150 x 64x 40mm |
|
Weight |
360g (with battery） |
|
Battery Type |
Li-ion |
|
Battery Capacity |
3200mAh |
|
Battery Charging Input |
5V1A |
|
Antenna Impedance |
50Ω |
|
Transmitter |
|
|
Power |
UHF:8w:4w:1w |
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
Frequency Stability |
±1.0ppm |
|
FM modulation mode |
12.5KHz 11K0F3E |
|
4FSK digital mode |
12.5KHz(data only): 7K60FXD |
|
Modulation distortion |
＜5% |
|
Vocoder |
AMBE+2TM |
|
Adjacent channel power |
60dBm 12.5KHz |
|
Audio Response |
+1~-3dB |
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
Receiver |
|
|
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
Audio Response |
+1~-3dB |
|
Rated Audio Distortion |
≤3% (Type) |
|
Audio Power |
≥500mW |
Retevis RT90 Brochure
Retevis RT90 USB Drive
Retevis RT90 Updated Firmware Version6.09
Retevis RT90 Firmware Update16.13
Retevis RT90 Programming Software
Retevis RT90 English Manual
Retevis HD1 Program Software
Retevis HD1(GPS) Program Software
Retevis HD1 English Manual
Retevis Ailunce HD1 Software English Manual
Retevis HD1 FIRMWARE UPDATE V2.2.9 GPS
Retevis HD1 FIRMWARE UPDATE V2.2.9
Retevis HD1 Dirver
Retevis HD1 Dirver
Suitable for older version programming cables; The WIN 11 system is not supported. Note: If the programming cable is plugged into the computer and the device manager displays "Prolific USB to Serial Comm Port (COM6)", it indicates that your cable is an old version.
