Fully integrated control microphone makes operation more convenient.
NOAA weather forecast, keep informed of weather changes.
20w gmrs mobile radio, medium to large power.
MR300 6.5dB fiberglass antenna with anti-collision spring base
FREE Shipping

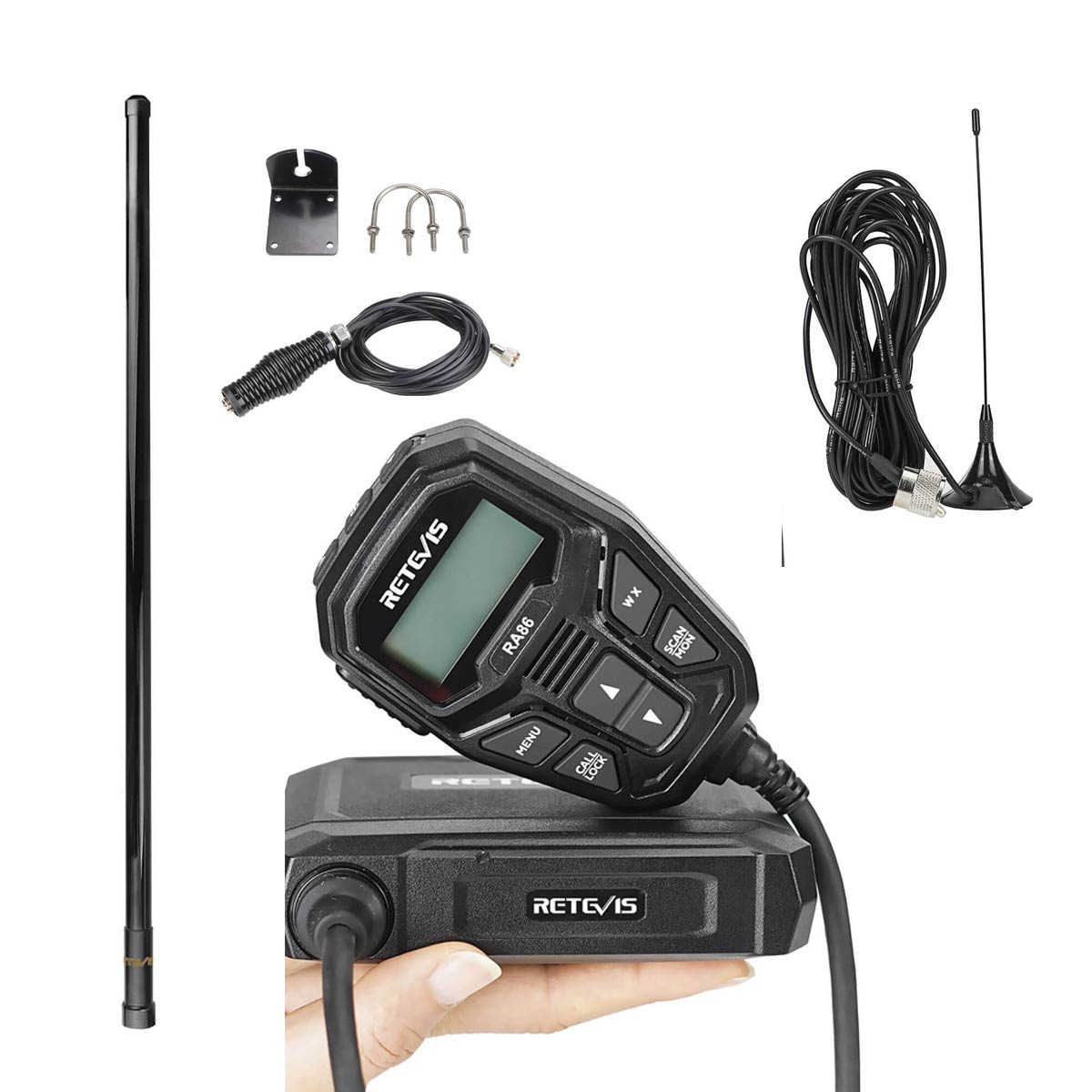

RA86 NOAA GMRS Mobile Radio with MR300 50w Antenna Bundle
Retevis RA86 NOAA GMRS Mobile Wireless with MR300 50W Fiberglass Antenna Bundle. is a 20w high power, NOAA, 30 GMRS channel, mobile GMRS two-way radio with an integrated control microphone. With the 50w fiberglass antenna, the transmission distance is longer! Suitable for off-road vehicles, jeeps, tractors, combine harvesters, etc. It is very convenient to use in farms, pastures and outdoor scenes.
Features
GMRS mobile radio;
22 GMRS channels; compatible with walkie-talkies; 8 relay channels; extended communication distance. A total of 99 GMRS direct channels + 8 GMRS relay channels
Fully integrated control microphone;
Easy to operate; place mobile radio base anywhere in vehicle; stow radio unit away; save dashboard space
NOAA Weather Alerts;
10 weather channels; support scanning and alarm; understand the latest weather information; facilitate timely adjustment of itinerary.
LCD Monitor;
4 backlight colors; 3. Adjustable backlight brightness; better visibility; convenient for understanding the status of mobile phone stations throughout the day.
microphone gain;
Increases microphone signal amplitude; better speaker sound quality; audible sound output; 3 levels selected.
privacy code;
50 CTCSS 210 DCS tone; 5720 channel selections; two ways to display code values or groups; effectively eliminate communication interference; press the PTT+scan key and turn on the mobile phone intercom to cancel code matching.
2 dB gain antenna;
Suction cup antenna; easy to fix on the car; extends communication distance; makes it easy to communicate with your partner even when you are far apart.
Durable;
The antenna is made of fiberglass material; the antenna is resistant to rain corrosion and supports long-term use
spring base;
The spring seat has high elasticity; when the car vibrates while driving, it can bend the antenna; effectively reducing damage to the antenna
Installation is stable;
Use bolts instead of screws to secure the antenna; even when the car vibrates; allows the antenna to remain stable for use
Strong compatibility;
The antenna has strong compatibility; can be easily used with different GMRS mobile radios; compatible with Retevis RA25 RB86 RA86 Midland MXT575 MXT500 MXT275VP4 MXT400 and Midland GMRS mobile two-way radios, etc.
Ease of use;
6.5dB gain antenna, effectively extending the communication distance; the black bracket can easily fix the antenna to the car.
Package includes：
1X Retevis RA86 GMRS Mobile Tractor Wireless
1X 2dB antenna
1X MR300 6dB fiberglass antenna
1X spring base
1X 5m feeder
1X User Manual
| overall parameters | ||
| Modulation | FM | |
| Frequency Range | GMRS（462.5625-467.725） | |
| frequency error | ±500Hz | |
| Operating Voltage | 12.6-14.4V | |
| Antenna Impedance | 50Ω | |
| bandwidth | 12.5kHz/20kHz | |
| Working current | ≤3.3A Hi power | |
| ≤1.8A Lo power | ||
| Operating temperature | -30℃-+55℃ | |
| TX parameters | ||
| transmit power | ≥18W Hi power 4.5-6W Lo power |
|
| Spurious RF components | ≤-60dBC | ≤-13dbm |
| Transmit SNR | ≥35 | |
| modulation limit | ≤2.5KHZ（N） | |
| ≤5KHZ（W）@Repeater Channel | ||
| Adjacent power | ≤-65dBc | ≤-60dBc |
| Modulation Sensitivity | 5-15mV | |
| audio pre-emphasis | -3~-7@AF=500Hz | -6±3@AF=500Hz |
| 3-7@AF=2KHz | 6±3@AF=2KHz | |
| RX parameters | ||
| Receiver sensitivity | ≤-122m@SINAD=12dB | |
| audio output | 3.2V-4.2V@8R SPK | 3.2v-4.2v@8R SPK @AF=1KHz.FM Devation=1.5KHZ |
| reception distortion | ≤5.0% | ≤8% |
| Receive SNR | ≥40 | ≥36 |
| receive blocking | ≥80 | ≥75 |
| co-channel rejection | ≤-12 | |
| lane selectivity | ≥70 | |
| audio de-emphasis | 2~6@AF=500Hz | 6±3@AF=500Hz |
| -8~-3@AF=2KHz | -6±3@AF=2KHz | |
2 dBAntenna:
| Antenna ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS |
| Frequency Range:462 MHz | Length: 165 mm |
| Impedance: 50 V | Diameter of Chassis:φ39.5 mm |
| VSWR: ≤1.5 | connector: SL16-J |
| Gain: 2 dBi | Coaxial Cable: RG-174 |
| Polarization: Vertical | Length of Cable: 5 m |
| Radiation: Omni | |
| Maximum Power Input-watts: 50 W |
MR300
|
Frequency |
GMRS（462-467MHz) |
|
VSWR |
≤1.5 |
|
Input Resistance |
50Ω |
|
Gain |
6.5dB |
|
Power Capacity |
50W |
|
Antenna Length |
110cm |
|
Antenna Diameter |
20mm |
|
Antenna Housing Material |
Fibreglass Radome |
|
Antenna weight |
335g |
|
Antenna Connector |
N.J |
|
Spring Base Height |
102mm(top plastic spacer not included) |
|
Spring Base Material |
Steel |
|
Feeder Type |
RG-58U |
|
Cable |
5M |
|
Connector |
SL16J |
|
(Spring Base + Feeder) weight |
670g |
|
Colour |
Black |
