How to set all call for Retevis RT40

Retevis RT40 is a FRS/PMR446 digital license-free walkie-talkie. There are three zones, each zone has 16 channels and a total of 48 channels. Because Retevis RT40 has single-call, group-call, and all-call functions, and has more channels than ordinary non-licensed walkie-talkies, it is widely used in businesses, such as business, security, schools, warehouses, and so on. Today we will focus on the all call function of Retevis RT40.

What is all call function? How to understand the all call of the walkie-talkie?

All call is not commonly used for hams, it is more suitable for commercial use, similar to broadcasting. When the walkie-talkie is set for group calls, this channel can only be transmitted but not received, which is similar to our broadcast, only sending but not receiving. For example, in a company, if the leader wants to post a message through the walkie-talkie, the leader's walkie-talkie can be set to all call. At this time, he transmits and all other walkie-talkies can receive it, even if someone accidentally presses the PTT button to transmit. It will not interfere with his transmission, because it is a all call radio, only transmitting but not receiving, and the priority is higher than other intercom group calls or single calls.

Secondly, the walkie-talkie with the all call function can only transmit but not receive. Only when other walkie-talkies are also set up with the all call function, can they receive the signals from each other. In other words, all call is equivalent to the leadership level from another point of view. Only walkie-talkies with the same level, that is, all call settings, can receive messages from each other.

How to set all call for Retevis RT40?

Step 1, Download the program software on the official website of retevis RT40 and open it. In the left menu bar, select "digital contact".

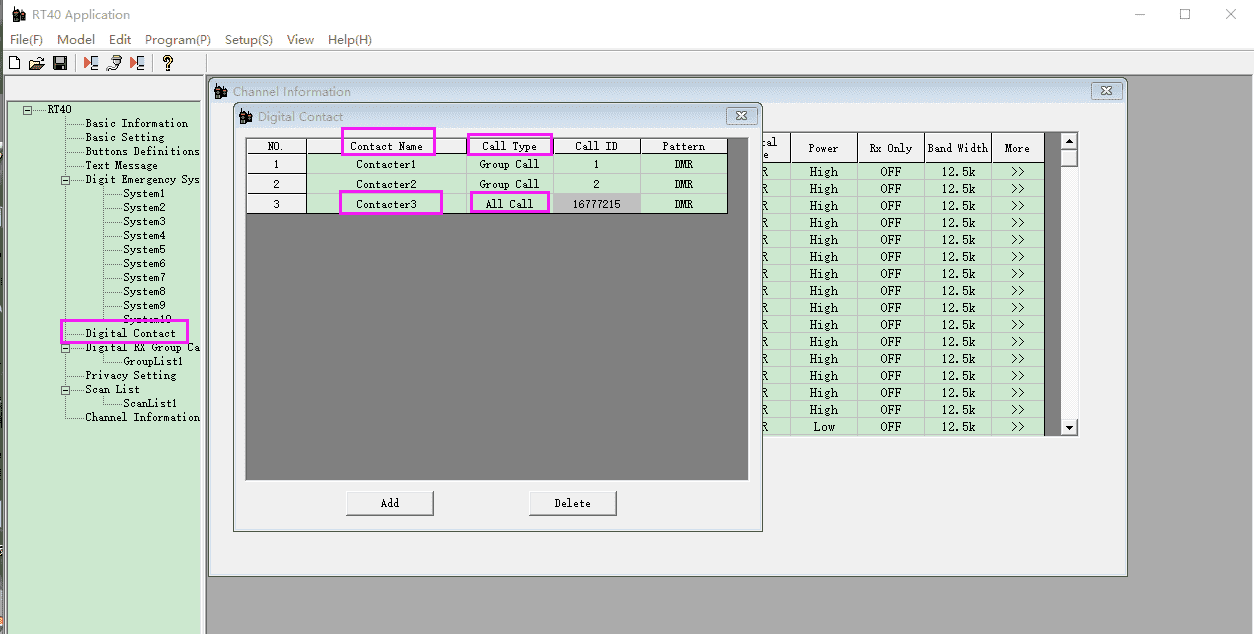

Set all call for retevis RT40

Add or change one call type to "All Call", Remember the "contact name" corresponding to all call(You can also set your own name to be easy to remember), we will use it in the next step.

Step 2, Select the channel information option in the tested menu bar, select the channel you want to set up all call, and click "more" on the far right.

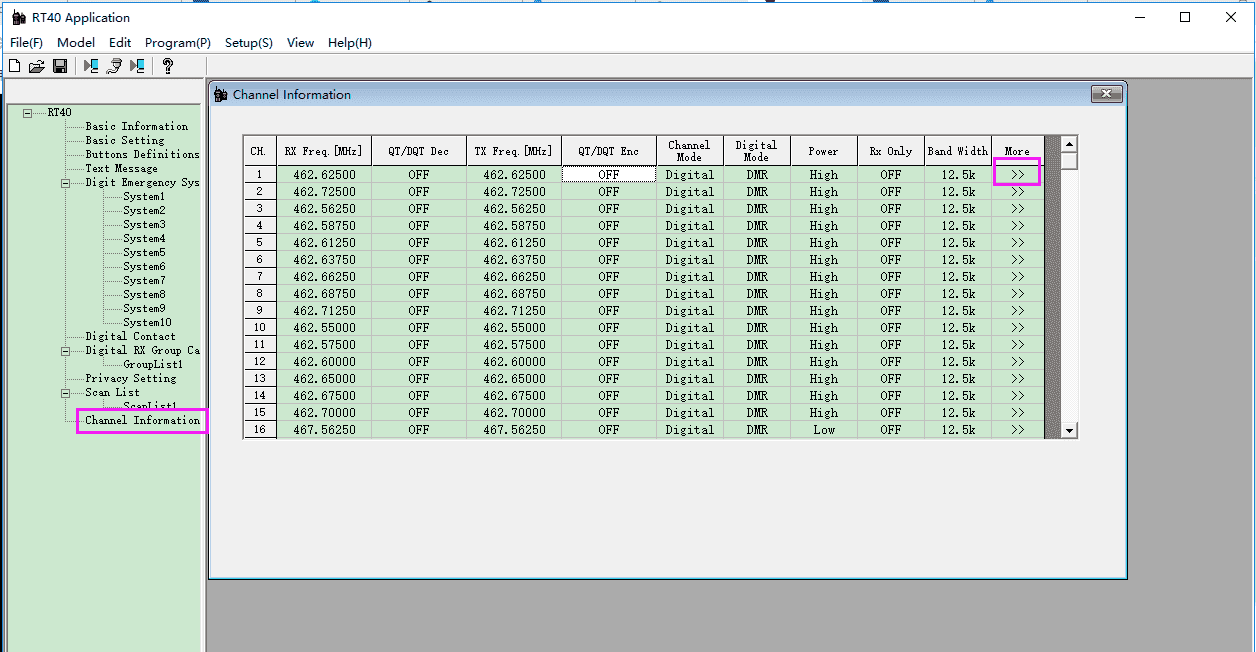

channel information setting of retevis RT40

We will enter the channel setting interface. It should be noted that group call and all call are functions of digital walkie-talkies, so the channel frequency must be a digital channel.

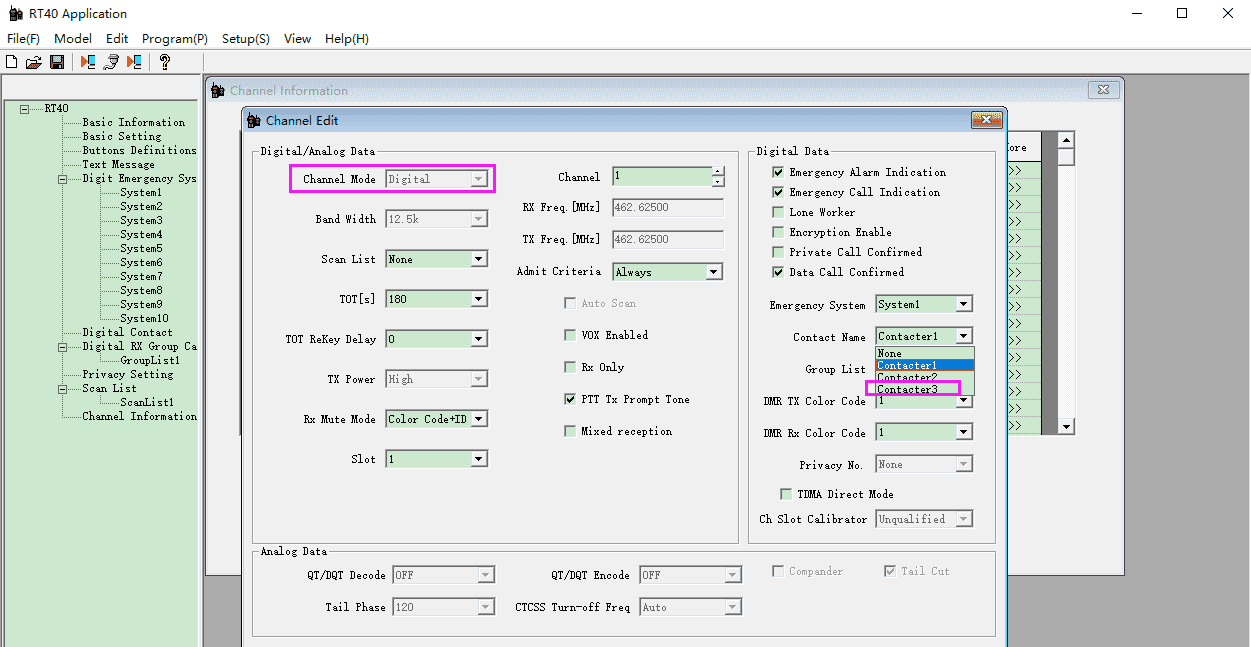

retevis RT40 contact name

In the contact name of the channel, select the contact name of the corresponding all call set in the first step. For example, we used "Contacter3" in the first step, and here we also select "Contacter3".

Step 3, After the above settings are completed, we can write the settings into the walkie-talkie, and then we can use the all call function of Retevis RT40.

Who can use Retevis RT40 all call functions:

Schools can use the all call function to send message notifications to all faculty and staff.
In an enterprise, leaders can use the all call function to send unified messages or instructions to all employees.
For warehouses, all warehouse employees can use the all call function to send notification messages.
Security, you can use the all call function to publish a unified message to everyone.

The biggest advantage of all call is that it can play a broadcast function and has priority, which is very suitable for business needs to send notifications, messages, etc. If you have any questions and ideas,welcome to contact us: info@retevissolutions.com
