How to use RT97 to extend the calling distance of RT29
- Retevis Solutions
- retevis rt29, retevis rt97, uhf two way radio, long range radio, high power radio, extend the calling distance, rt29 writing frequency, rt97 writing frequency
RT29 is a high-power radio, available in UHF and VHF, black and orange. It is divided into two versions: standard version and waterproof version. High power brings long-distance call experience. RT29 has attracted many friends through its excellent performance. RT29 has appeared in farms, schools, and rescue operations.

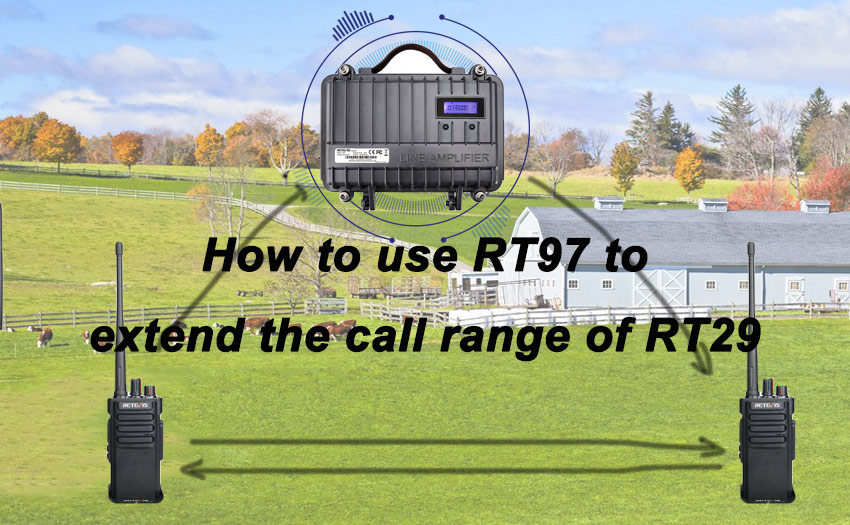

How to use RT97 to extend the calling distance of RT29
RT97 is a repeater with a 10w duplexer. When the talking distance of our current radio cannot meet our calling needs, we usually use repeaters to extend the talking distance. So as a portable and easy-to-operate repeater, RT97 is a good choice. So how can we use RT97 to extend the calling distance of RT29? Today I will teach you an article.

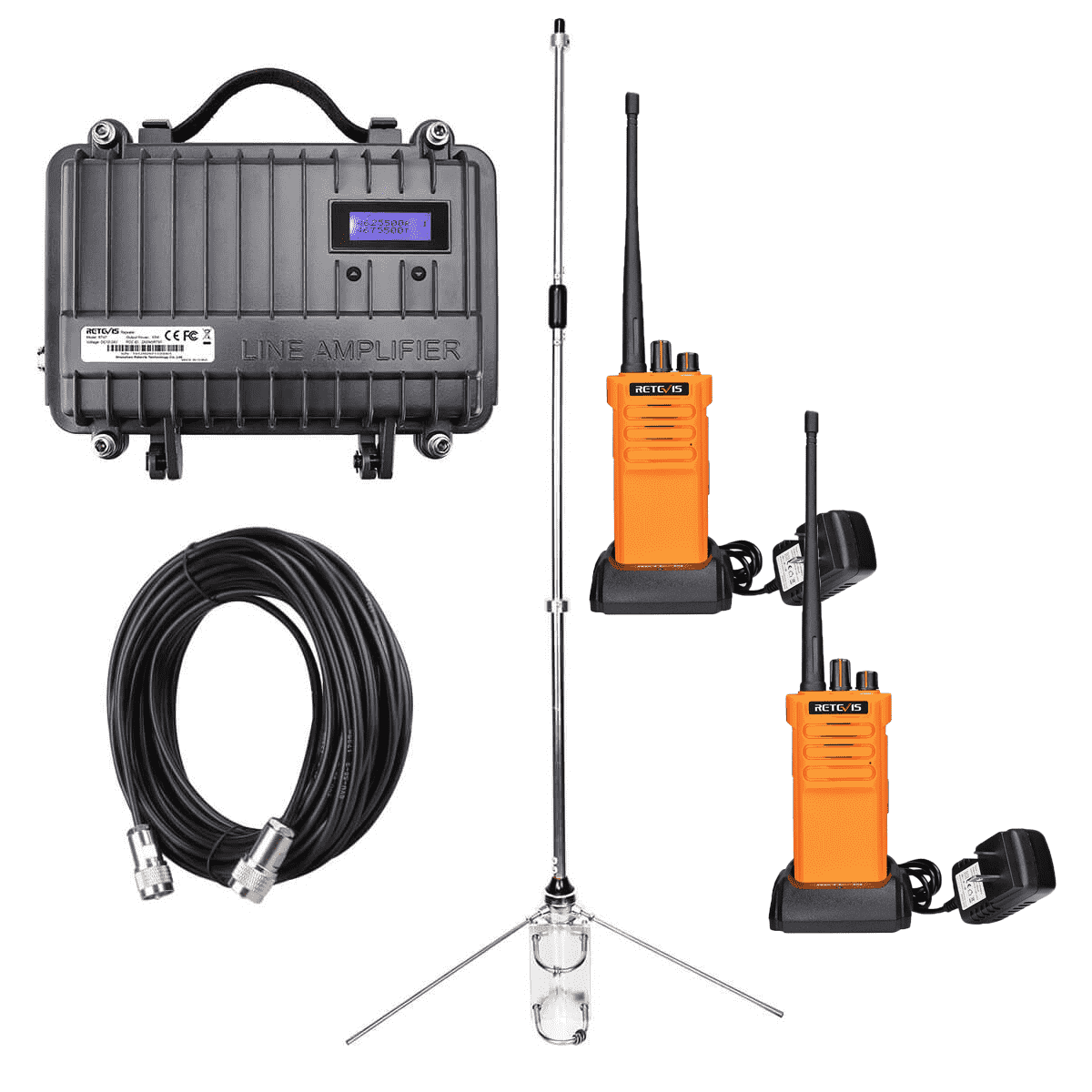

About RT97 Repeater
RT97 repeater has four frequencies GMRS-VHF-UHF-customized frequencies. (We must note clearly RX and TX when purchasing customized frequencies)
RT97 UHF: RX: 453.31250Mhz, TX: 463.31250Mhz
RT97 VHF: RX: 152.61250Mhz, TX: 162.61250Mhz
RT97 GMRS: RX: 467.5500Mhz, TX: 462.5500Mhz
Let's take the frequency of RT97 uhf as an example.
First, we need to install the RT97 repeater driver and frequency writing software
allowable. Download and install from the website:https://www.retevissolutions.com/rt97-repeater-and-rt29-long-range-radio-bundle#A9150Ax1-C9123Ax1-C9073Ax1-A9140AX2-J9131Px1
Next, connect the computer and RT97 repeater with the program cable.

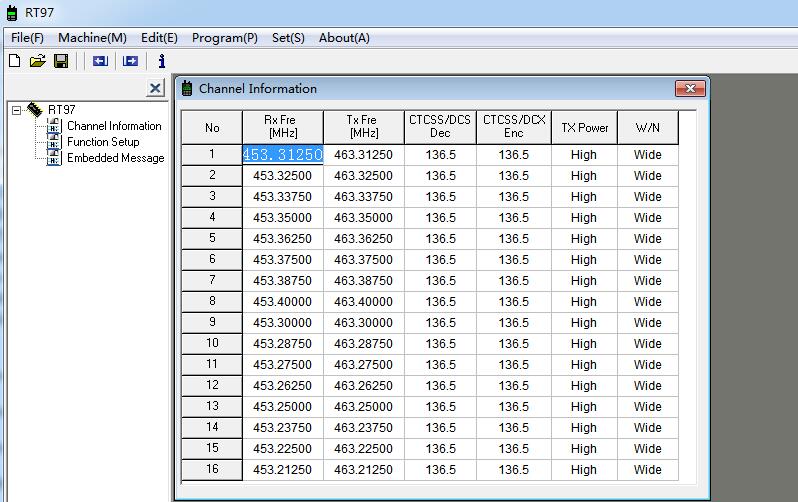

Then, open the frequency writing software and select the correct port.Select to open the default factory frequency of RT97 UHF. The frequency point can be changed within the range of ±200KHz of the center frequency point.
At this time we can see the RX, TX and CTCSS of the RT97 uhf band.
About RT29 UHF high power two way radio
First download the frequency writing software of RT29.
Secondly, connect RT29 and computer with program cable.
Then, open the frequency writing software and select the correct port.

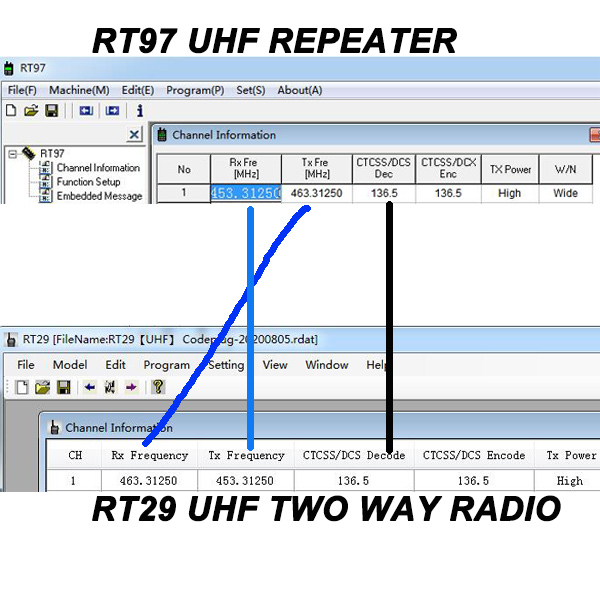

Use RT97 repeater to relay signals
The first step is to keep the ctcss of RT29 the same as RT97.
In the second step, the RX of RT97 is the TS of RT29. The TX of RT97 is the RX of RT29.
The third step is to write RT29 after the change. The two RT29s will remain the same, so that the RT97 relay signal can be used to extend the communication distance between the two RT29s.
How to use RT97 to extend the call distance of RT29, have you learned it?
If you have other questions, you can contact us at molly@retevissolutions.com
