Retevis RA86 GMRS mobile Radio Program Software Introduction

Retevis RA86 GMRS mobile Radio Program Software Introduction

Retevis RA86 GMRS mobile Radio is a new member of the Retevis GMRS family. It has a mini compact host and an integrated control microphone. You can complete some settings through the microphone.

Want to know which functions of the Retevis RA86 you can set through the microphone? Please refer to our Youtube video:

But sometimes, you also have to use programming software to complete some other settings, such as setting the connection to the repeater, setting more channels, etc. Today we will introduce the programming software of Retevis RA86 GMRS mobile Radio.

Find Retevis RA86 GMRS mobile Radio Software? Download it here👉 https://www.retevissolutions.com/ra86-gmrs-radio

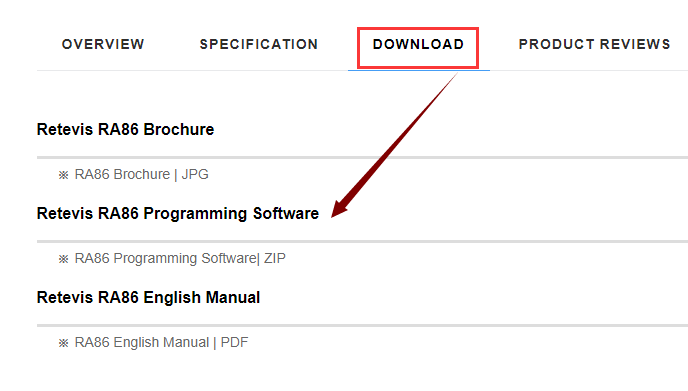

In the download part:

retevis ra86 software

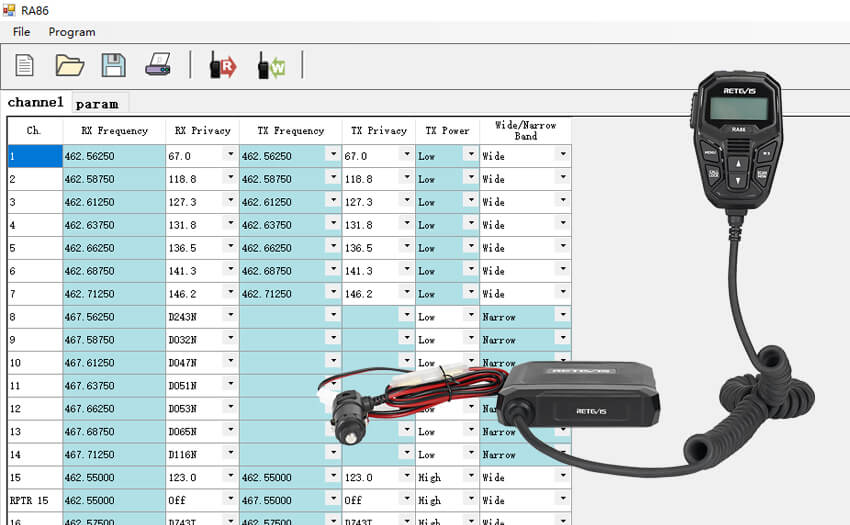

Retevis RA86 GMRS mobile Radio Program Software Introduction

We introduce the software of Retevis RA86 from two aspects, function part and channel part.

First, the Channel Part

Retevis RA86 have 99channels,

Among them, channels 23-99 are reserved blank channels, and you can add new GMRS channels according to your needs to meet the selection of which communication frequency and channel communication with different subtones;

gmrsRetevis RA86 GMRS Radio Software reserved blank channels

Channels 1-22 are straight-through GMRS channels. Channels 1-7 default to low power. You can change the bandwidth and sub-tone.


gmrsRetevis RA86 GMRS Radio 1-7 channels

Channels 8-14 can only receive but not transmit, and the sub-tone is empty. Fixed narrowband, you can change the power to high or low.

gmrsRetevis RA86 GMRS Radio 8-14 channels

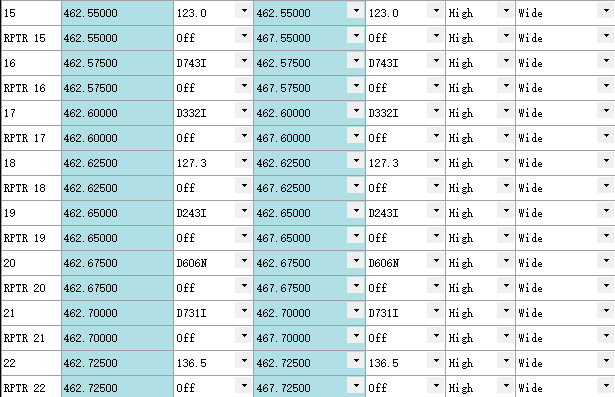

Channel 15-22 can change bandwidth, subtone, power; RPTR15-22 channel are repeater channels, used to connect GMRS repeaters, you can change the bandwidth, tone, power.

gmrsRetevis RA86 GMRS Radio 15-22 channels

The second part, the functions.

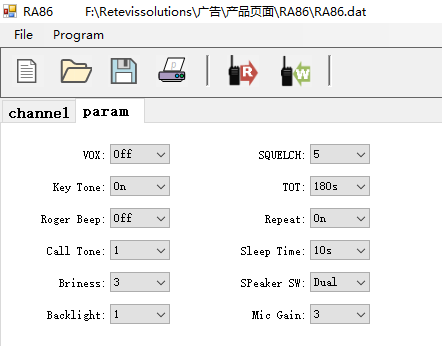

The function settings of Retevis RA86 GMRS Radio corresponds to the param part of the programming software, including a total of 12 function setting options such as VOX, tot, Mic Gain, etc. These functions can also be set on the integrated microphone, which is very convenient.

gmrsRetevis RA86 GMRS Radio function settings

For Retevis RA86 GMRS Mobile Radio’s factory default 30 GMRS channels (including repeater channels), you can directly set related functions through the hand microphone. For blank channels, you need to use program software, and the combination key turns off all sub-tones, and The setting of NOAA can be done by the hand microphone.

If you want to buy Retevis RA86 GMRS mobile radio, welcome order by clicking below picture:

gmrs mobile radio
If you need help, welcome to contact us with your order ID at info@retevis.com.
